Product Description

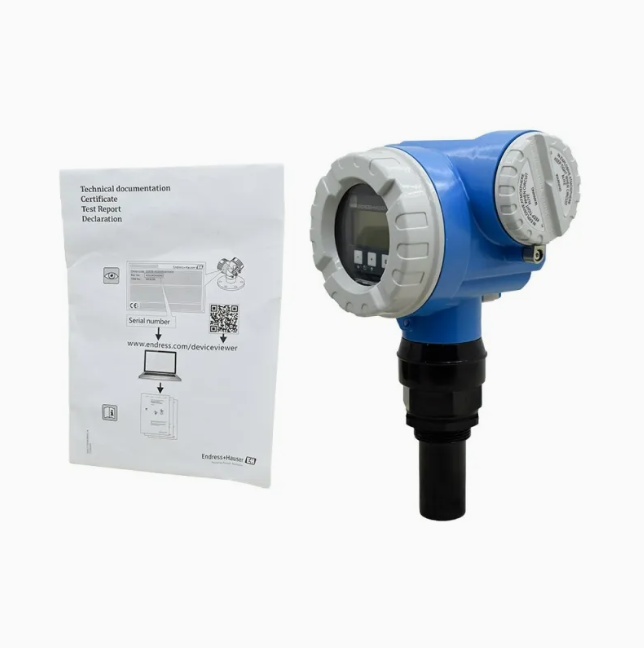

Endress+Hauser E+H Time-of-Flight Prosonic Fmu40 Ultrasonic Level Liquid Transmitter
Field of application
The Prosonic FMU40 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
Ultrasonic measurement Time-of-Flight Prosonic FMU40
Endress+Hauser E+H Time-of-Flight Prosonic Fmu40 Ultrasonic Level Liquid Transmitter
Two-wire or four-wire instrument for continuous non-contact level and flow measurement.
Process connection: Thread
Temperature: -40 to +80°C (-40 to +176°F)
Pressure: +0.7 to +3bar (+10 to +44psi)
Maximum measuring distance: Liquids 5m (16ft), Solids 2m (16ft)
Blocking distance: Liquids and Solids 0.25m (0.8ft)
International explosion protection certificates
Endress+Hauser E+H Time-of-Flight Prosonic Fmu40 Ultrasonic Level Liquid Transmitter
Benefits
Reliable non-contact measurement
Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
Envelope curves on the on-site display for simple diagnosis
Hermetically sealed and potted sensor
Chemically resistant sensor out of PVDF
Calibration without filling or discharging
Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
Specification
Specification
Details
Measuring Principle
Time - of - flight Ultrasonic
Application
Suitable for non - contact level measurement of fluids, pastes, coarse bulk materials, and flow measurement in open channels or at weirs. Can be used in storage tanks, agitators, stockpiles, and conveyor belts.
Measuring Range
Liquids: 5 m (16 ft); Solids: 2 m (6.6 ft)
Blocking Distance
0.25 m (0.8 ft)
Measuring Accuracy
±2 mm or ±0.2% of the set measuring range
Process Temperature
- 40 °C … 80 °C (- 40 °F … 176 °F)
Process Pressure
0.7 bar … 3 bar abs. (10 psi … 44 psi abs.)
Main Wetted Parts
PVDF
Power Supply
Two - wire or four - wire, 10.5...32 V DC (for four - wire), suitable for different explosion - proof requirements, such as Ex ia: 10.5...30 V DC
Output Signal
4 … 20 mA, HART (standard), can also support PROFIBUS PA, FOUNDATION Fieldbus
Load
HART communication minimum load: 250 Ω
Current Consumption
Two - wire connection: 3.6 … 22 mA, standard setting current consumption 4 mA (start - up current: 11 mA)
Power Consumption
Two - wire connection: 51 … 800 mW
Measuring Value Resolution
1 mm (0.04 in)
Working Frequency
About 70 kHz
Maximum Sound Pressure Level in Front of Sensor
146 dB
Threshold 110 dB Distance
1.0 m (3.3 ft)
Process Connection
Thread, G ½ or NPT ½; Cable gland: M20×1.5 (cable diameter 6 … 10 mm (0.24 … 0.39 in))
Maximum Installation Nozzle Length
DN50/2": 80 mm (3.15 in); DN80/3": 240 mm (9.45 in); DN100/4": 300 mm (11.8 in); DN150/6": 400 mm (15.7 in); DN200/8": 400 mm (15.7 in); DN250/10": 400 mm (15.7 in); DN300/12": 400 mm (15.7 in)
Protection Level
IP68, NEMA 6P (24 h, 1.83 m (6 ft) underwater); IP66, NEMA 4X
Enclosure Material
T12 and F12 enclosures: AlSi10Mg powder - coated
Sensor Material
PVDF, with EPDM seal ring
Calibration Method
Calibration without filling or discharging, with integrated temperature sensor for automatic correction of sound velocity affected by temperature
On - site Operation
Menu - guided on - site operation with four - line plain - text display, 7 languages selectable, and envelope curve can be displayed on - site for diagnosis
