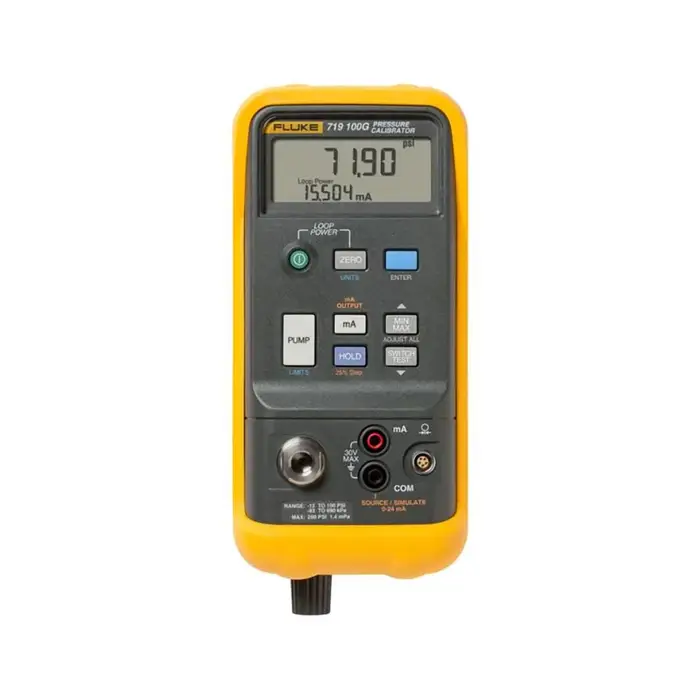

Fluke 719 Pressure Calibrator

Key features

Pressure calibrator with built-in electric pump for one-handed pressure calibration
Offers best-in-class pressure measurement uncertainty of 0.025%
Measures and sources mA with best in class 0.015% accuracy to test valves and I/Ps
Calibrates 30 psi and 100 psi pressure ranges
Features precision pressure adjustment vernier for easy and accurate pressure calibration

Calibrate pressure with one hand using the Fluke 719 Electric Pressure Calibrator

Forget the hassle of hand pumping. Now you can calibrate and test pressure devices quickly and easily with one hand,

saving valuable time. With the innovative, built-in electric pump, the Fluke 719 Electric Pressure Calibrator provides pressure

calibration at your fingertips!

Use the programmable pump limit settings to eliminate over-pressurization, and to set “pump to” pressure values. The

unique cleanout port design reduces pump failures, and makes the 719 easy to clean without repair. The compact,

lightweight form, combined with one-handed calibration, makes this pressure calibrator the ideal tool for busy process

professionals.

The Fluke 719 delivers pressure calibration made easy, by a name you know and trust for all your process calibration needs.

Other useful features:

Simulates mA signals to troubleshoot 4-20 mA loops

2 Fluke Corporation Fluke 719 Pressure Calibrator

Powers transmitters during test using 24 V loop supply

Comes with three-year warranty for calibrator

Provides variable release rate bleed valve for easy pressure adjustment

Offers ideal performance for high accuracy transmitter calibration

Offers a programmable pressure calibrator pump limit that:

Eliminates over-pressurization

Allows the user to program target pressures for pumping

Tests pressure switches easily with switch test function

Provides extended pressure measurement range with any of 50 750P series Pressure Modules

Pump cleanout ports to reduce pump failures from moisture and fluid damage
