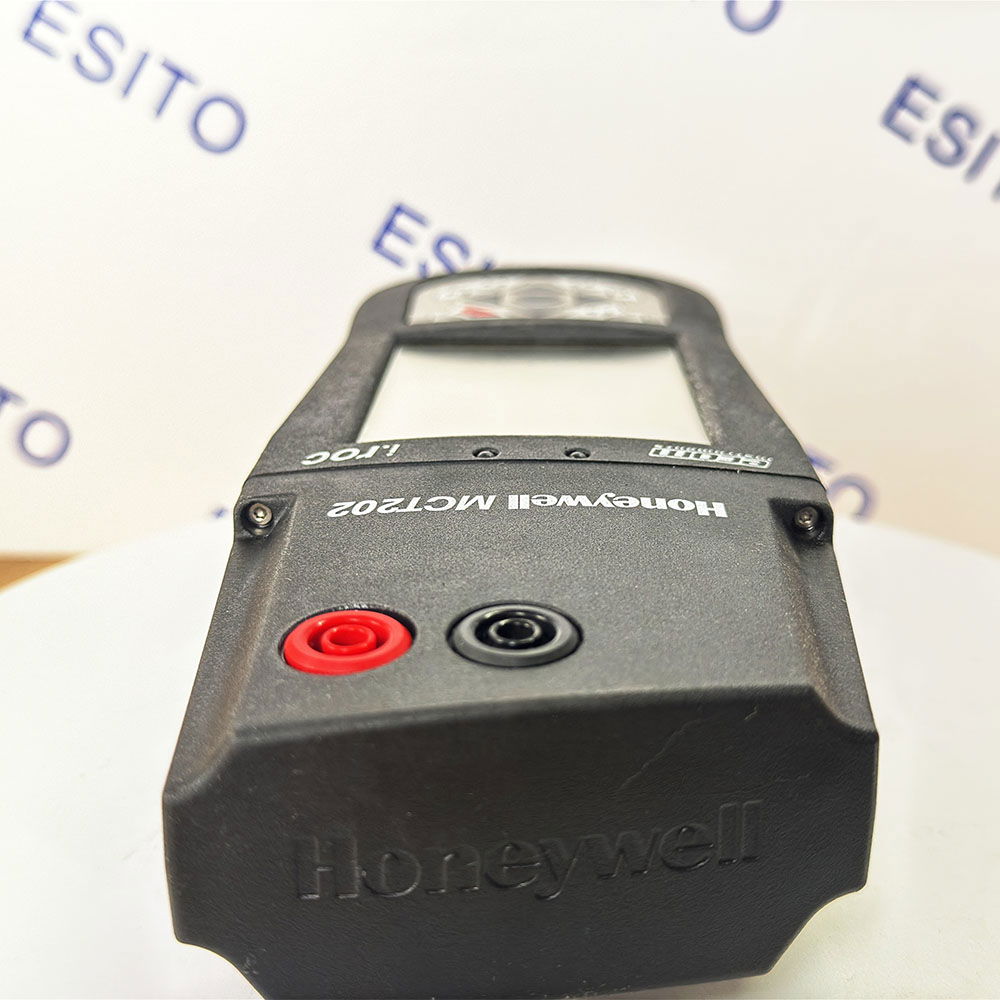

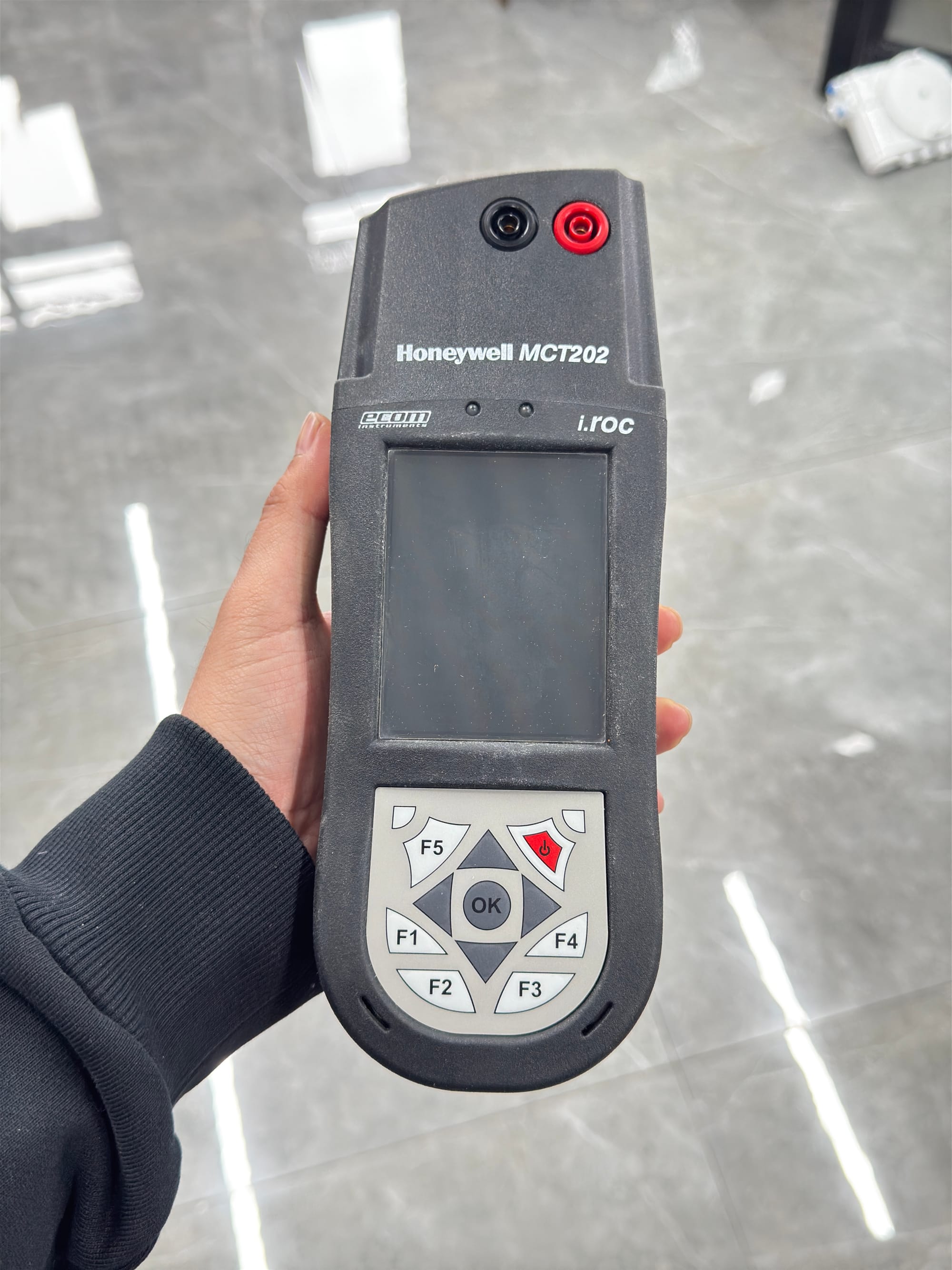

Honeywell Mct202 Handheld Communicator
Honeywell Mct202 Handheld Configurator Hart Field Communicator
Features
- Configures any Honeywell DE device: ST3000 pressure and STT3000 temperature transmitters.
- Configures any HART® device with a published HART Device Descriptions (DD), regardless of device manufacturer.
- Supports easy downloading of any new vendor’s DD files via a PC connection.
- Intuitive graphical user interface provides simple navigation and device configuration.
- Available in three versions handling almost any environmental condition:
• Ruggedized versionEnvironmentally hardened with no approvals.
• Zone 2 approvals: Intrinsicallysafe version available with FM Class I, Div 2 and ATEX Zone 2 approvals.
• Zone 1 approvals: Intrinsicallysafe version available with FM Class I, Div 1 and ATEX Zone 1 approvals.
- Fully supports all HART 5.X commands and Universal commands for HART 6.X and utilizes DD-IDE/SDC 625 technology and “Open” Tools standard.
Benefits
- Supports transmitter diagnostic and on-line monitoring as well as transmitter calibration.
- Standardizes both HART and DE field instrument configuration with one handheld device. Configuration of common, universal and specific device commands is supported.
- User interface provides detailed explanations and sub-menus during the configuration process for ease of operation for even the casual user.
Item | Details |
Processor | Intel PXA270 520 MHz |
Memory | 128 MB ROM and 64 MB SDRAM |
Operating System | Microsoft Windows Mobile 5.0 |
Display | 3.5" transflective TFT color with LED backlight, 240 x 320 pixels, 64 k color, touch screen |
Communication Protocols | Supports HART and Honeywell's Digitally Enhanced (DE) protocol |
Power Supply | Rechargeable lithium - ion battery |
Dimensions | 6 x 2.875 x 1.5 in (15.24 x 7.3025 x 3.81 cm) |
Weight | 200 g (0.4409 lbs) |
Operating Temperature | -10 to +50 °C (+14 to +122 °F) |
Storage Temperature | -20 to +60 °C (-4 to +140 °F) |
Operating Humidity | 10 to 90% RH |
