Micro Emerson Motion ELITE Peak Performance Coriolis Flow and Density Meter
Micro Motion ELITE Peak Performance Coriolis Flow and Density Meter
Specifications
Liquid Accuracy / Repeatability±0.1% - 0.05% / 0.05% - 0.025%
Gas Accuracy / Repeatability±0.25% / 0.20%
Density Accuracy / Repeatability±0.0005 - 0.0002 g/cc / 0.00025 - 0.0001 g/cc
Line Size1/12 inch (DN1) - 14 inch (DN350)
Pressure RangeRated up to 6,000 psig (414 barg) for select models
Temperature Range-454° F (-270° C) to 800° F (426° C)
ElectronicsExpansive I/O options including mA, frequency, discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus
TurndownUp to 59:1 turndown from nominal
Features
Get unparalleled measurement sensitivity and stability from this uniquely designed meter
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications
Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects
Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure
Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)
Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals
Choose from models available in 316L Stainless Steel, C-22 nickel alloy and super-duplex materials
Interact with our 3D model to learn more about our ELITE Coriolis Flow and Density Meters
Ultimate real world performance
■ Unchallengeable ELITE performance on liquid mass flow, volume flow, and density
measurements
■ Best-in-class gas mass flow measurement
■ Reliable two-phase flow measurement for the most challenging applications
■ Designed to minimize process, mounting, and environmental effects
Best fit for application
■ Scalable platform for the widest range of line size and application coverage including hygienic,
cryogenic, high pressure, and high temperature
■ Available with the broadest range of communication and connectivity options
Superior measurement confidence
■ Smart Meter Verification™
delivers complete, traceable calibration verification, continuously or
on-demand at the press of a button
■ Globally leading ISO/IEC 17025 calibration facilities offer best in class uncertainty of ±0.014%
■ Intelligent sensor design mitigates the need for zero calibration in the field

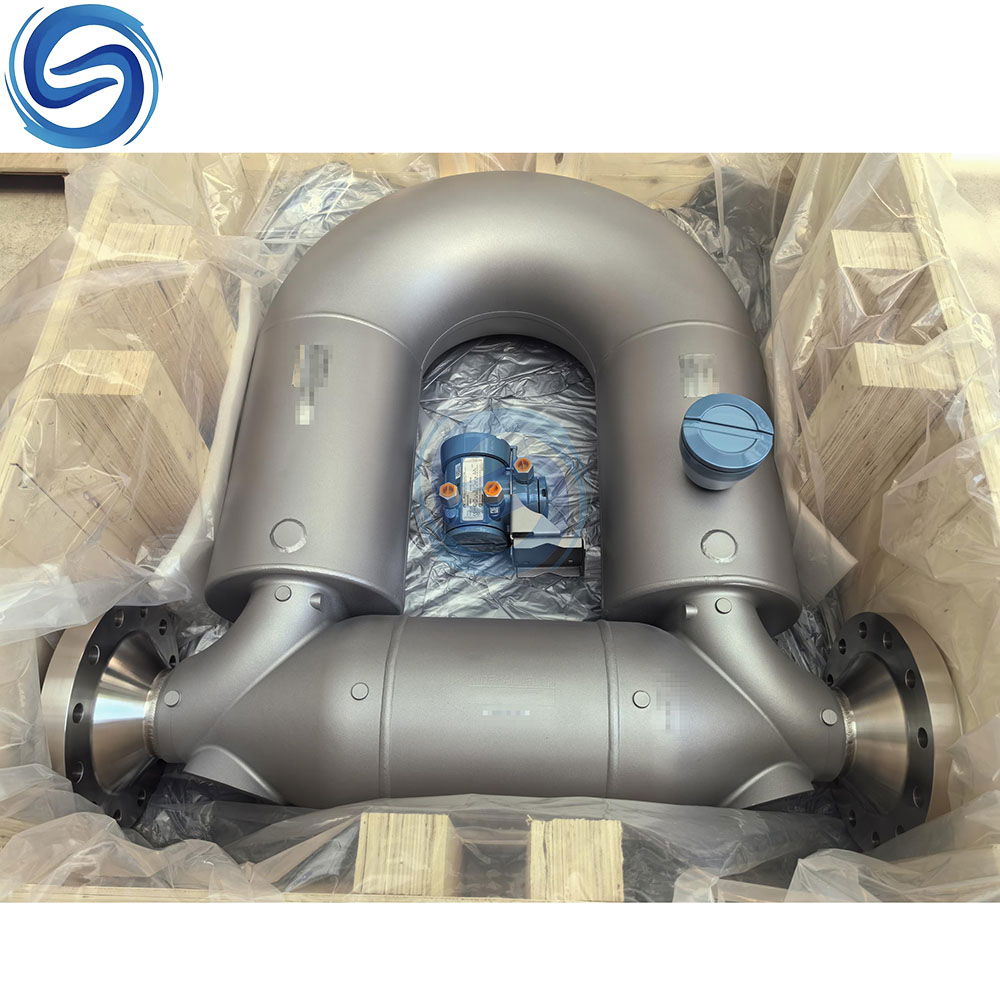

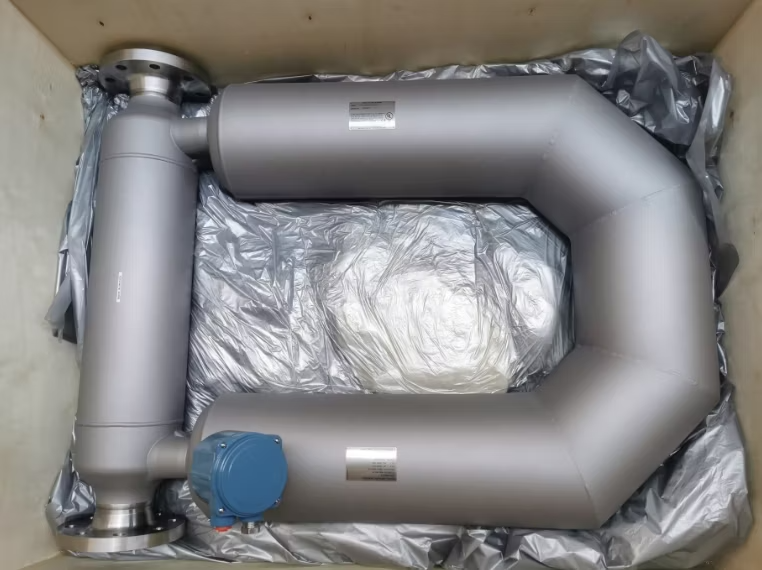

| Model | Micro Motion Elite CMF400M Coriolis Meter |
| Brand | Rosemount |
Measurement Range | 0.04 kg/h to 300000 kg/h |
Density Measurement Range | 0.2 g/cc to 2.0 g/cc |
Density Measurement Accuracy | ± 0.0002 g/cc |
Temperature Range | -50 ºC to 200 ºC |
Material | Stainless Steel 316, Alloy C276 |
Connection Method | Thread, Flange |
Protection Level | IP66/67 |
Communication Interface | HART |
| Meter approvals, calibrations, and certifications | •UL •CSA •IECEx •NEPSI •ATEX •Ingress Protection •EMC effects |
|---|
