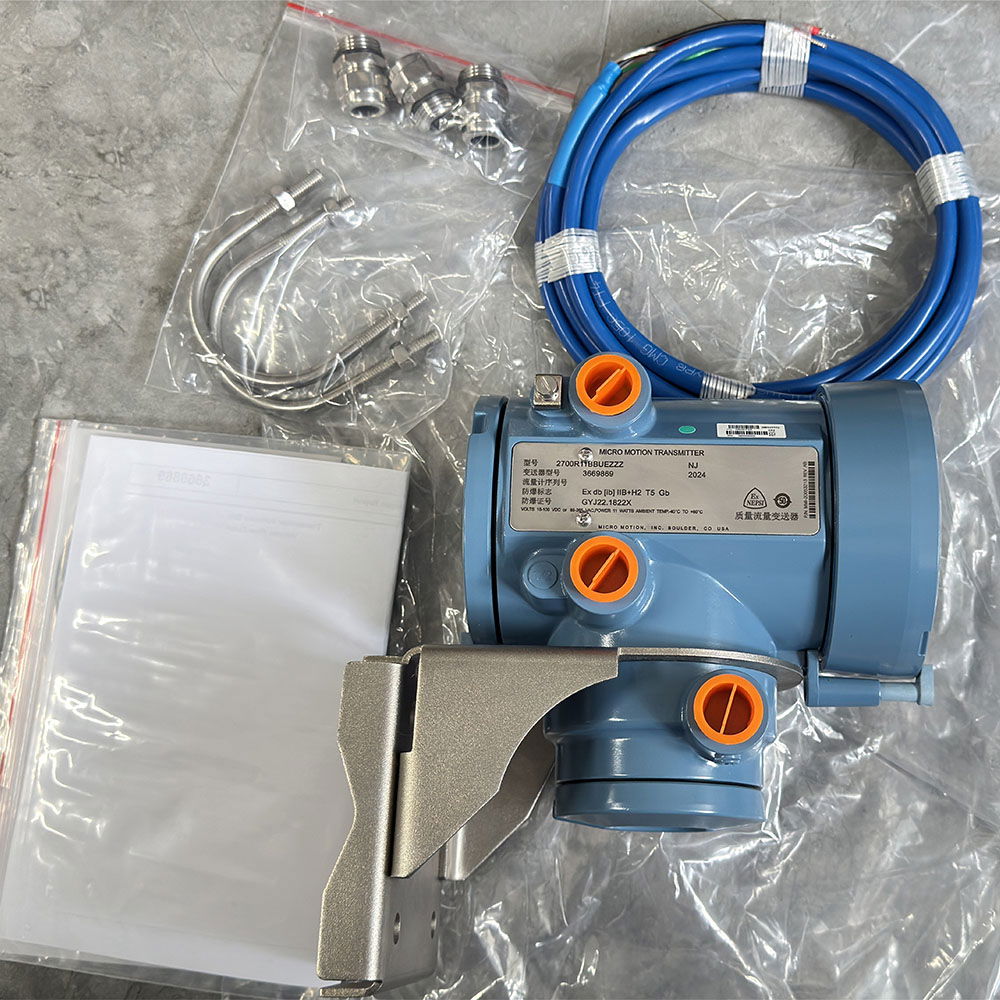

Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter

A field-mount transmitter powered by MVD Technology designed for compact, integral mounting. These transmitters feature a rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface designed to make flow meter access easy. Flow meter commissioning is simple and straight-forward with virtually no special programming requirements.

Features

Maximize flexibility with integral or remote mounting

Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing

Lower wiring costs and install easily and quickly

Eliminate the need for additional instruments with concentration and net flow measurement

Rely on custody-transfer approval and certification for SIL2 and SIL3

Gain real-time and in-process measurement integrity assurance with Smart Meter Verification

Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™

Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface

Specifications

Output variablesMass & volume flow

Net product content / flow

Temperature

Density

Concentration

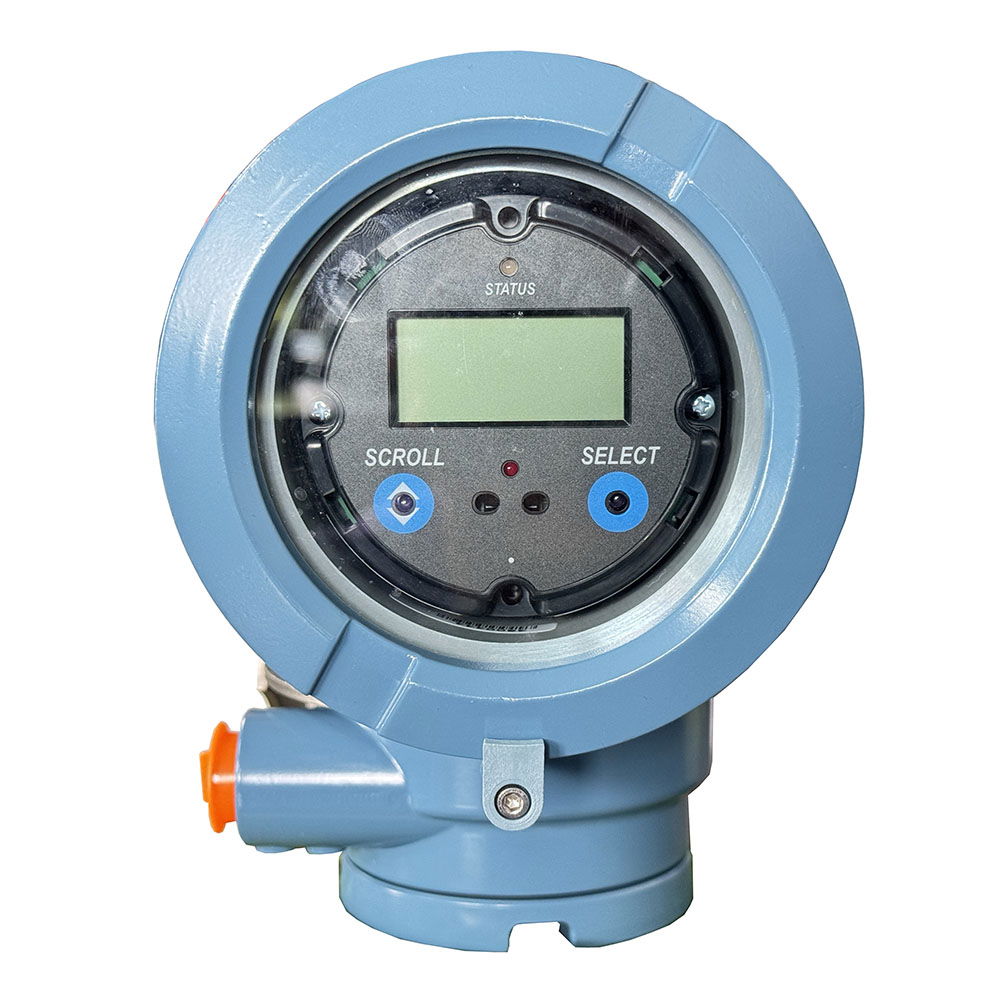

Local displayStandard user interface with 2-line LCD panel

Two optical switches for local operation

Glass or plastic lens options

PowerSelf-switching AC/DC input, automatically recognizes supply voltage

85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum

18 to 100 VDC, 6 watts typical, 11 watts maximum

Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2

Input/output signals

Not intrinsically safe

Analog output option:

One active 4–20 mA output

One active frequencty output

Frequency output can be configured as a discrete output

Configurable I/O option:

One or two active 4-20 mA outputs

One or two active/passive frequency outputs

One or two active/passive discrete outputs

One discrete input

Intrinsically safe

Analog output option:

One passive 4-20 mA output

One passive frequency output

Frequency output can be configured as a discrete output

Foundation™ fieldbus (Obsolete)

optionally non-incendive

One Foundation fieldbus H1 output

PROFIBUS-PA (Obsolete)

One PROFIBUS-PA output

HART/WirelessHARTBell 202 signal is superimposed on the primary milliamp output

WirelessHART available via THUM adapter

HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions

Mounting optionsField-mount

Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor

Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor

Application typesContinuous process control

Custody transfer

Two-phase flow/entrained gas

Meter verification

SIS Certified

Hazardous approvalsClass I, Div. 1

Class I, Div. 2

Zone 1

Zone 2
