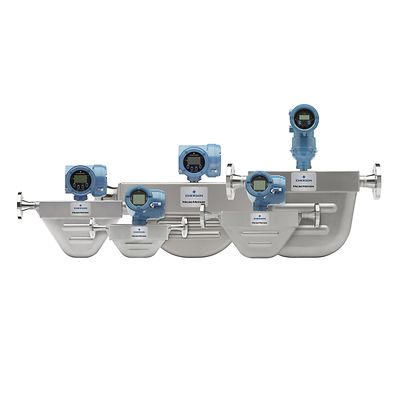

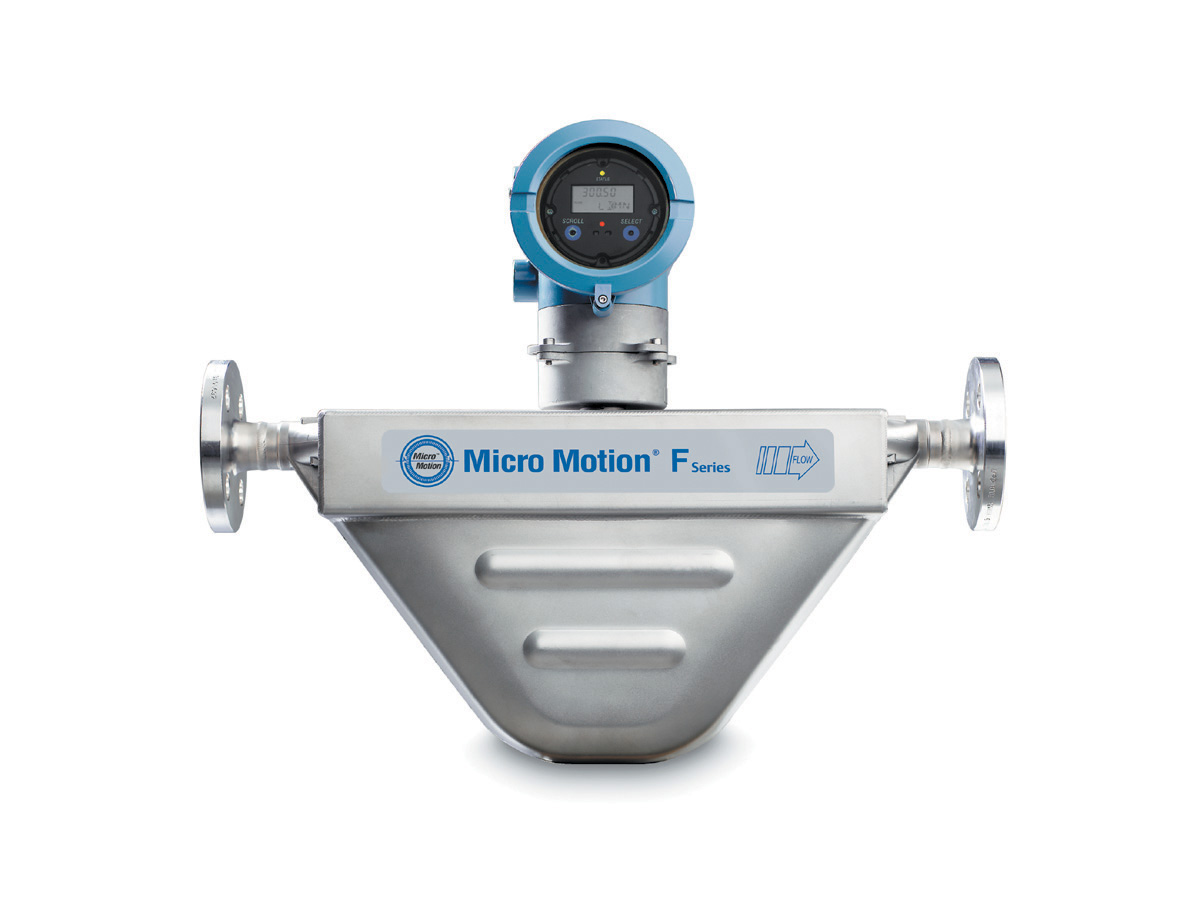

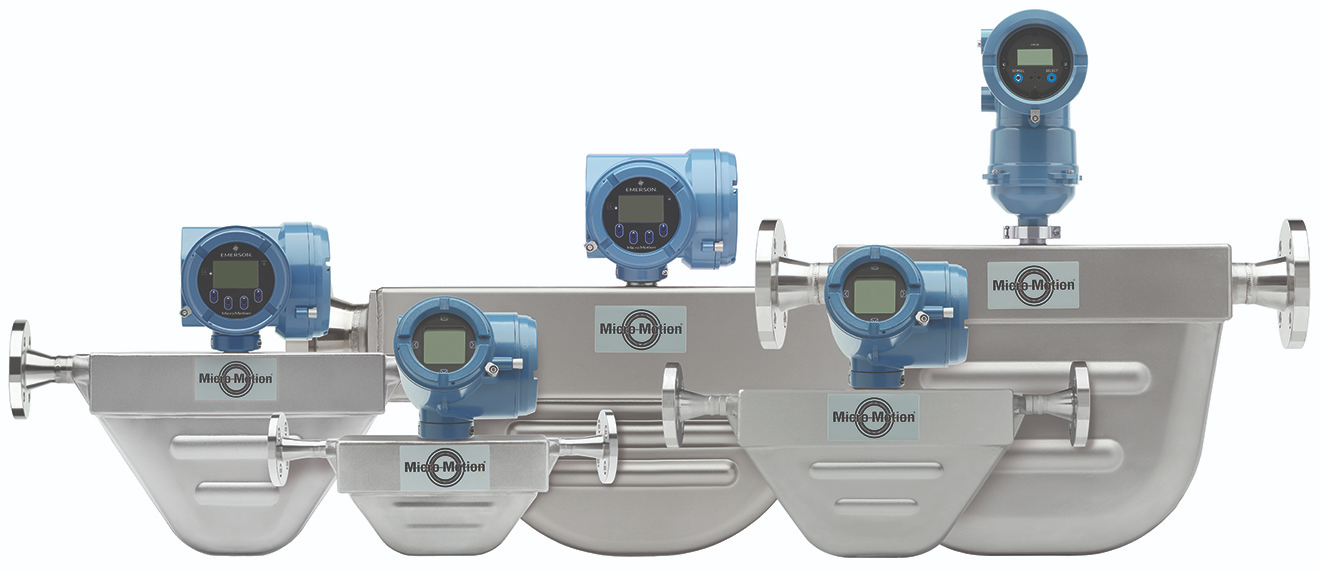

Micro Motion F-Series Compact, Drainable Coriolis Flow and Density Meters

Delivering highly reliable and robust measurement, F-Series flow meters are the preferred choice for process control applications. Choose these smart meters to more efficiently run your process and resolve your toughest productivity challenges

Features

Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design

Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes

Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and data logging

Broad range of meter approvals and certifications, including, but not limited to; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR

Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil

Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology

Gain real-time and in-process measurement integrity assurance with Smart Meter Verification

Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters

Specifications

Liquid Accuracy / RepeatabilityUp to ±0.1% of rate (0.05% of rate)

Gas Accuracy / RepeatabilityUp to ±0.35% of rate (0.25% of rate)

Density Accuracy / RepeatabilityUp to ±0.0005 g/cm3 (0.0002 g/cm3)

Line Size1/4" (DN6) - 4" (DN100)

Pressure RangeUp to 6250 psig (430 barg)

Temperature Range-148 °F to 662 °F (-100 °C to 350 °C)

Electronics (soft)Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus

Turndown20:1
