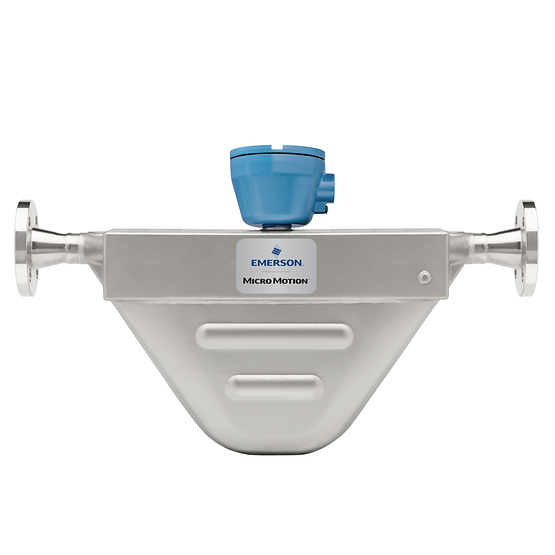

A 316L Stainless Steel, high pressure, compact and drainable, Coriolis flow meter best suited for general purpose applications requiring a repeatable and reliable measurement.

Specifications

Mass flow accuracy (Liquid)±0.50% of rate (standard)±0.40% of rate (optional)

Mass flow repeatability (Liquid)±0.25% of rate (standard)±0.20% of rate (optional)

Volume flow accuracy (Liquid)±0.50% of rate

Volume flow repeatability (Liquid)±0.25% of rate

Mass flow accuracy (Gas)±0.75% of rate

Mass flow repeatability (Gas)±0.50% of rate

Density accuracy (Liquid)±0.01 g/cm³ (10.0 kg/m³) (standard)±0.003 g/cm³ (3.0 kg/m³) (optional)

Temperature accuracy±1 °C ±0.5% of reading

Sensor maximum working pressure1,450 psig (100 barg)

Meter approvals, calibrations, and certifications

• CSA

• IECEx

• NEPSI

• ATEX

Features

Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design

Increase flexibility with available 316L stainless steel construction that is compatible with most fluids

Cut costs with an integral transmitter that provides a flow-variable-only architecture

Choose from rugged transmitter options including: Class I, Division 1/Zone 1 housing with optional local-operator interface

Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR

Minimize maintenance and boost long-term reliability with no moving parts to wear or replace

Install virtually anywhere with compact design
