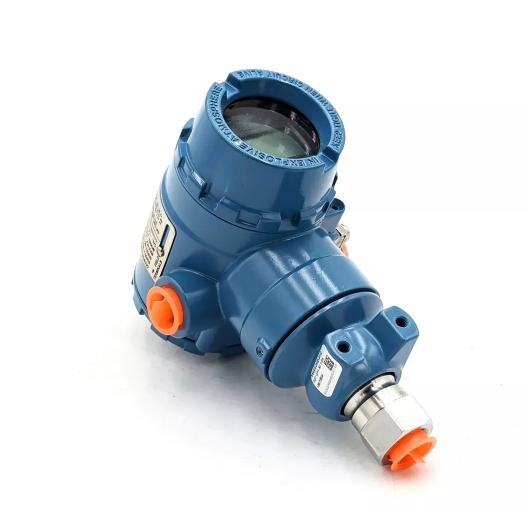

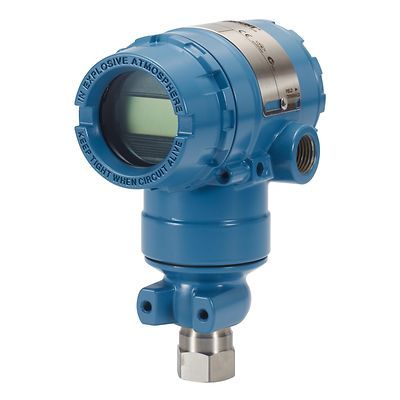

Rosemount 2051 In-Line Pressure Transmitter
Rosemount™ 2051 In-Line Pressure Transmitter
Features
- In-line gage and absolute pressure measurements support up to 10000 psi (689,47 bar) for pressure and level solutions
- Delivered fully assembled to manifolds or diaphragm seals for straightforward installation
- Intuitive Local Operator Interface streamlines commissioning for simple and cost-effective installation
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- 316L SST and Hastelloy C-276 process wetted parts
Specification
Item | details |
Pressure Range | - 14.7 to 30 psi (- 1.0 to 2.1 bar) - 14.7 to 150 psi (- 1.0 to 10.3 bar) - 14.7 to 800 psi (- 1.0 to 55 bar) - 14.7 to 4000 psi (- 1.0 to 276 bar) - 14.7 to 10000 psi (- 1.0 to 689 bar) |
Output Signal | 4 - 20 mA with digital signal based on HART protocol. Other options include Foundation Fieldbus and 1 - 5 VDC HART low power. |
Process Wetted Parts | 316L stainless steel, Hastelloy C - 276, Tantalum (for special applications) |
O - ring | Glass - filled PTFE, graphite - filled PTFE |
Sensor Fill Fluid | Silicone inert (for differential and gauge only) |
Housing Material | Aluminum (1/2 - 14 NPT or M20 × 1.5), stainless steel (1/2 - 14 NPT or M20 × 1.5) |
Accuracy | Standard: 0.075%, optional enhanced: 0.065% |
Stability | Two - year stability of 0.10%, optional five - year stability |
Rangeability | 100:1 |
