Rosemount 2088 pressure transmitter
Rosemount™ 2088 Gauge and Absolute Pressure
Features

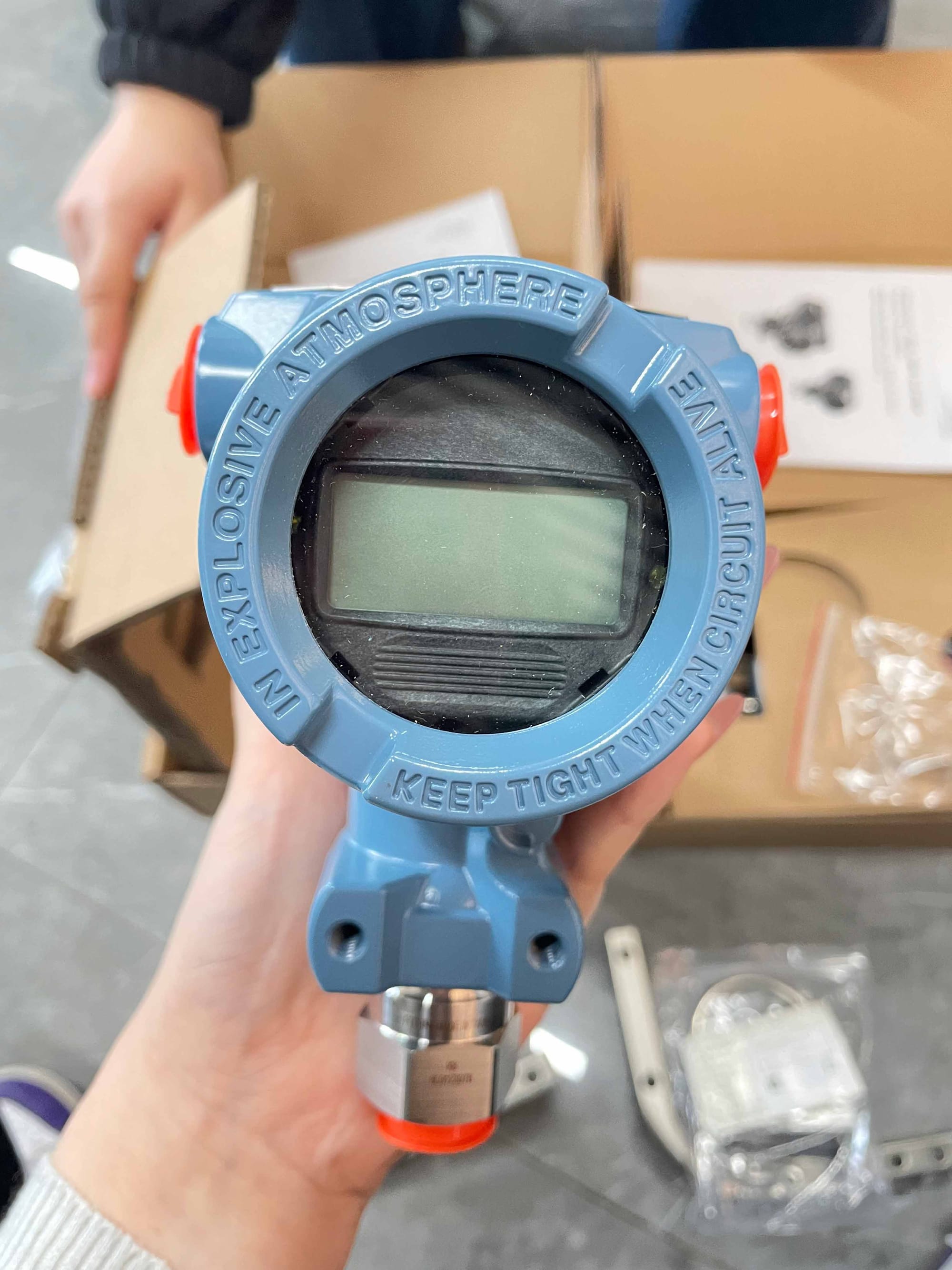

Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use
Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
Lightweight, compact design allows for easy installation
Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
Lightweight, compact design allows for easy installation
Rosemount 2088 Absolute and Gage Pressure Transmitter
Performance of 0.065 percent with high accuracy option
1.Lightweight, compact design for cost-effective installation
2.Protocols available include 4–20 mA HART®and 1–5 Vdc HART Low Power
3. Absolute and gauge pressure ranges up to 10,000 psi (689 bar)
4. Rangeability of 50:1
Absolute and gage pressure ranges from
0–1.5 psi to 0–4,000 psi (0–0.1 to 0–276 bar)
• Performance of 0.075% with high accuracy option
• Rangeability of 20:1
• Lightweight, compact design for cost effective
installation
• Optional HART low power
Specification
Warranty | Up to 5-year limited warranty |
Rangedown | 50:1 |
Measurement Range | Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) Absolute |
Output | Differential pressure, scaled variable |
Communication Protocol | 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART® |
Process Wetted Material | 316L SST, Alloy C-276 |
Diagnostics | Basic Diagnostics |
Certifications/Approvals | NSF, NACE®, hazardous location, see full specs for complete list of certifications |
Emerson Rosemount 2088 Gauge and Absolute Pressure Transmitter

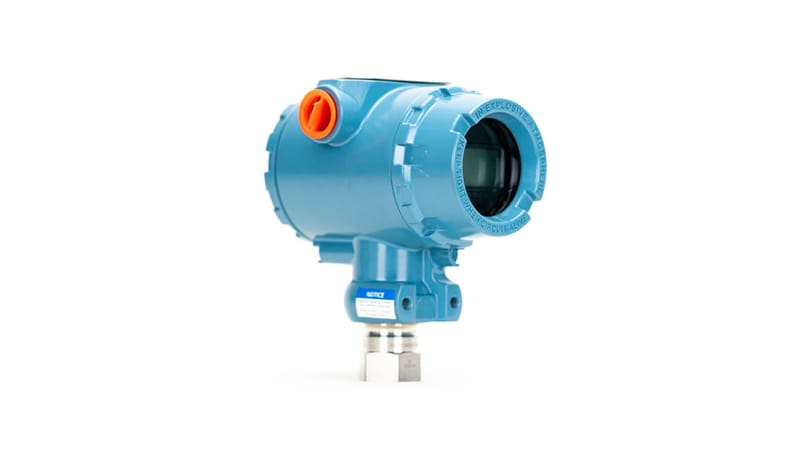

The Rosemount 2088 pressure transmitter provides accurate, stable, and reliable pressure measurement in difficult applications. The small compact design allows the Rosemount 2088 pressure transmitter to be directly connected to a process – providing a quick, easy, and cost effective installation.
The Rosemount 2088 pressure transmitter provides superior measurement capability that can be used for almost any line pressure or tank level applications. The 2088 pressure transmitter is available in either gauge or absolute pressure in pressure ranges to 4,000 psi (275 bar). It utilizes a solid-state, polysilicon pressure sensor with a choice of either 316L or Hastelloy C-276 isolating diaphragms. The low oil fill of this design has very little temperature effect and outstanding accuracy.
