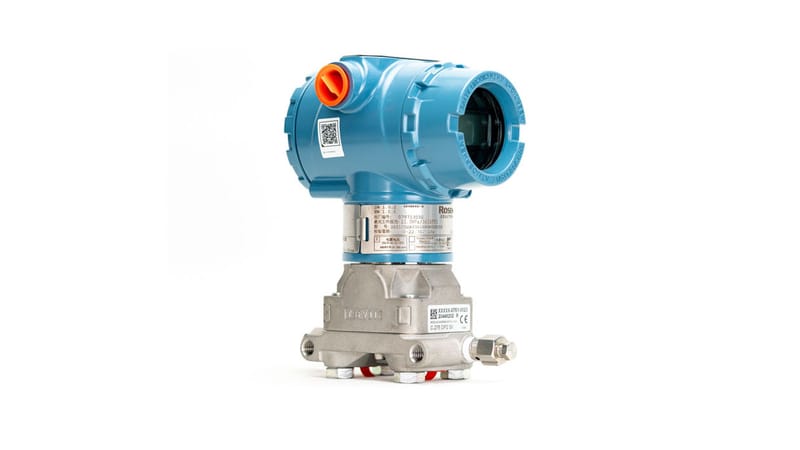

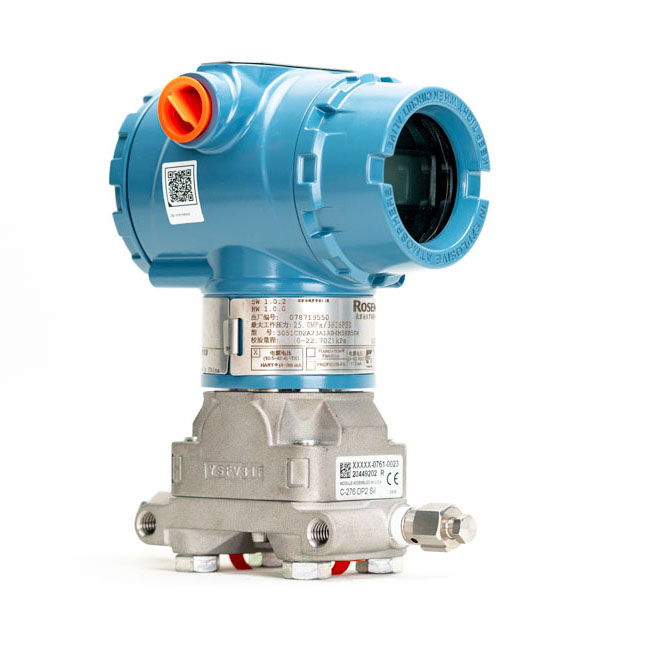

Emerson Rosemount 3051CD Different Pressure Transmitter for Ventilation Filtration Systems

■ More than ten million installed

■ Reference accuracy 0.04 percent of span

■ Installed total performance of 0.14 percent of span

■ 10-year stability of 0.2 percent of URL

■ SIL 2/3 certified (IEC 61508)

Features

Patented Rosemount Coplanar technology offers optimized performance as a pressure, Differential Pressure Flow or Differential Pressure Level solution

Application specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer or a level transmitter with volume calculations

Complete pressure, level, or flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility

Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool

The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions

Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime

Quick service buttons offer built-in configuration buttons for streamlined commissioning

SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
