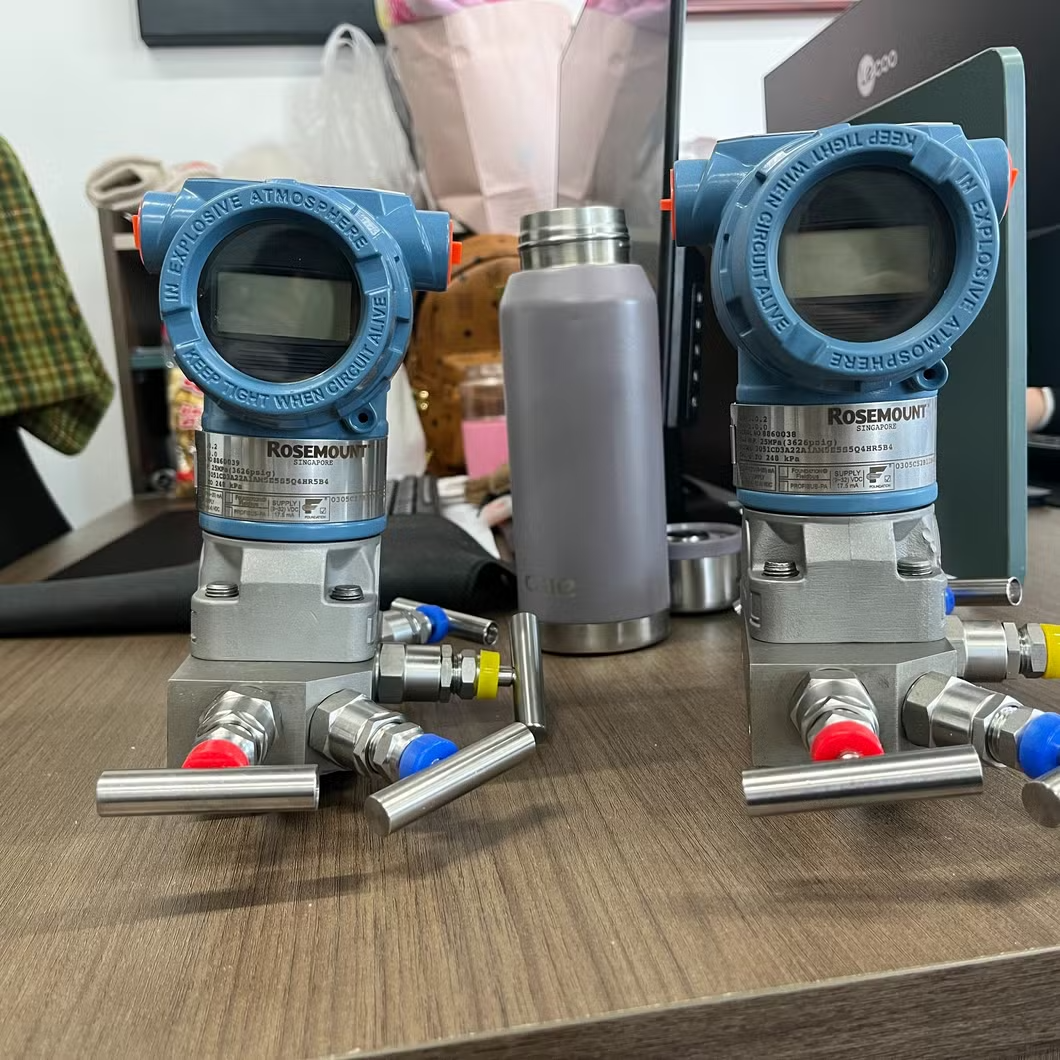

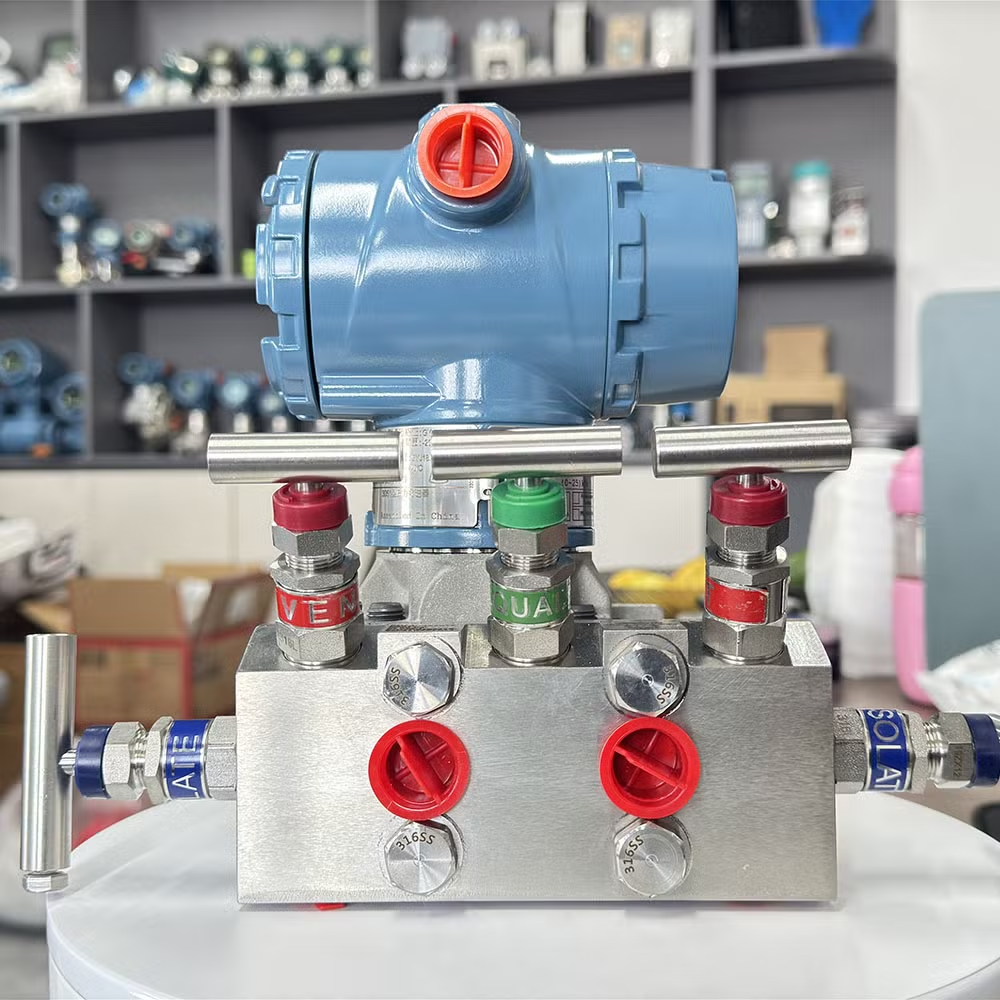

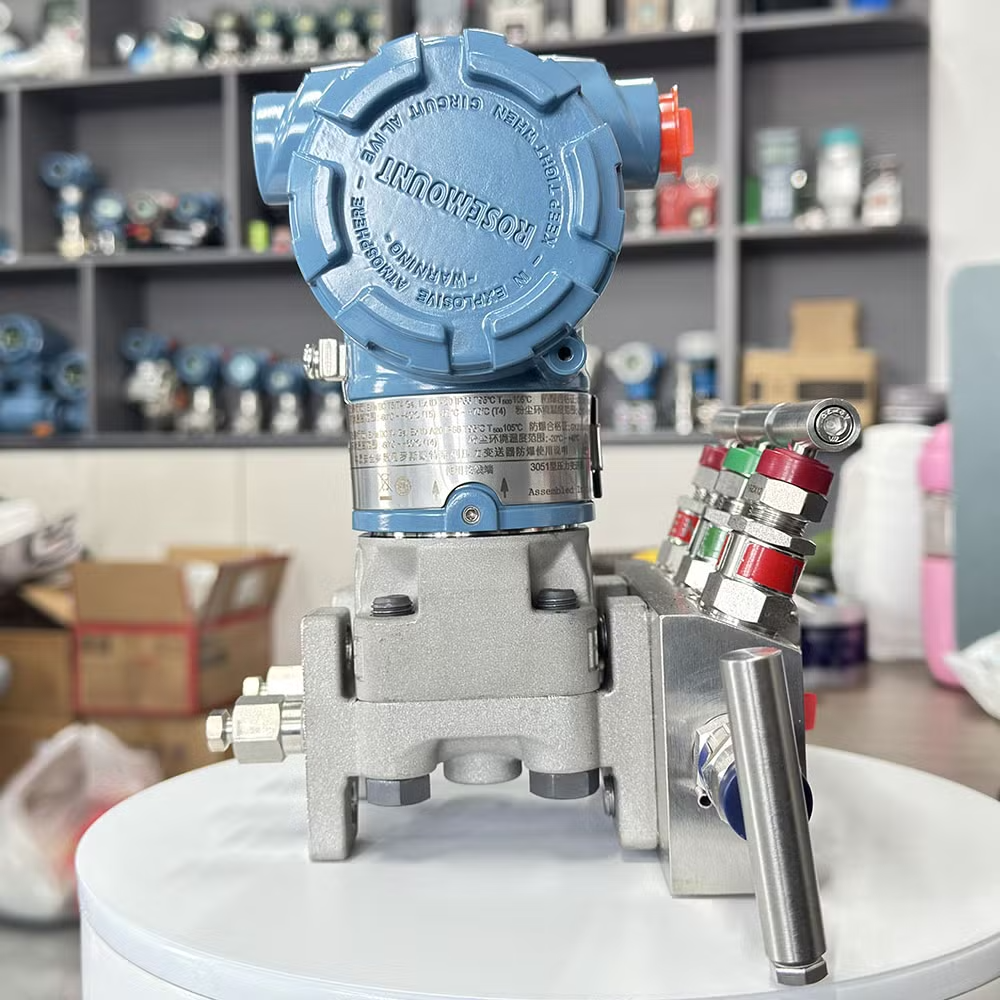

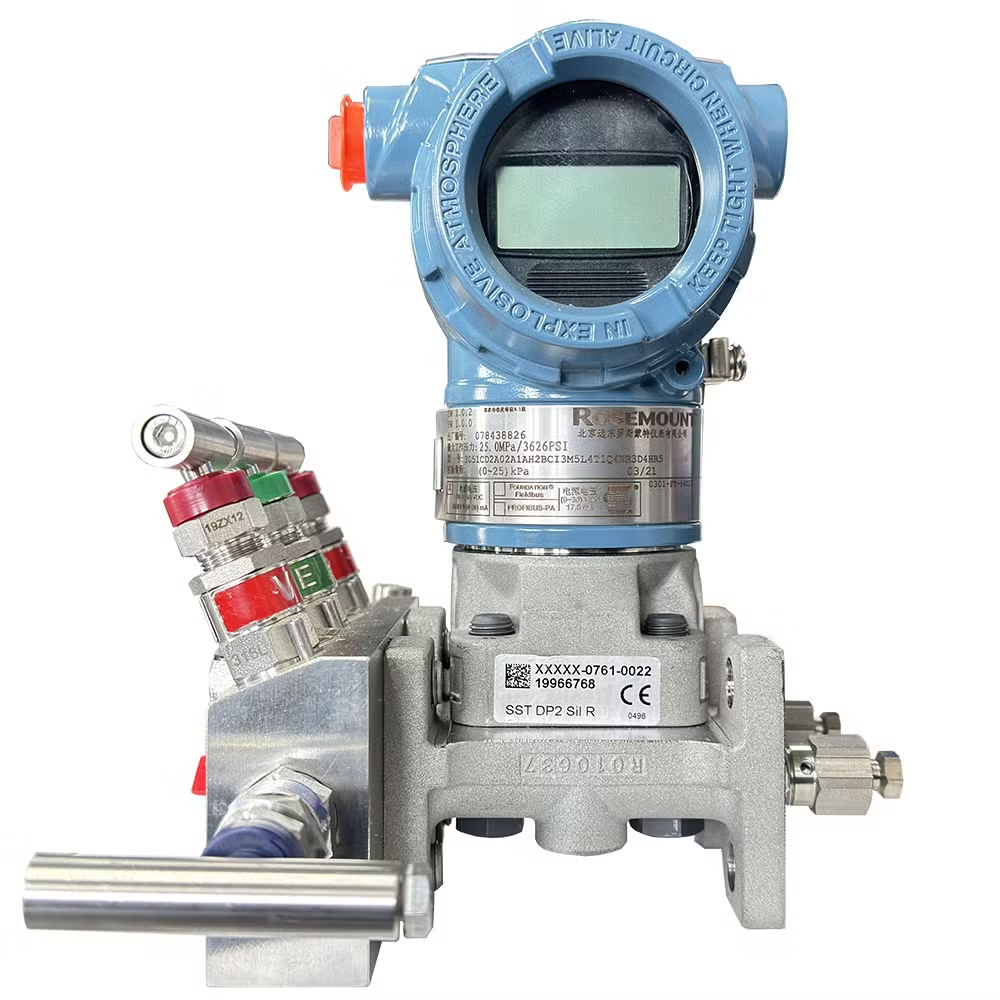

Rosemount 3051CD Differential Pressure Transmitter with Integral Valve Manifold 0305
Rosemount 3051CD Differential Pressure Transmitter with Integral Valve Manifold 0305
Product Description

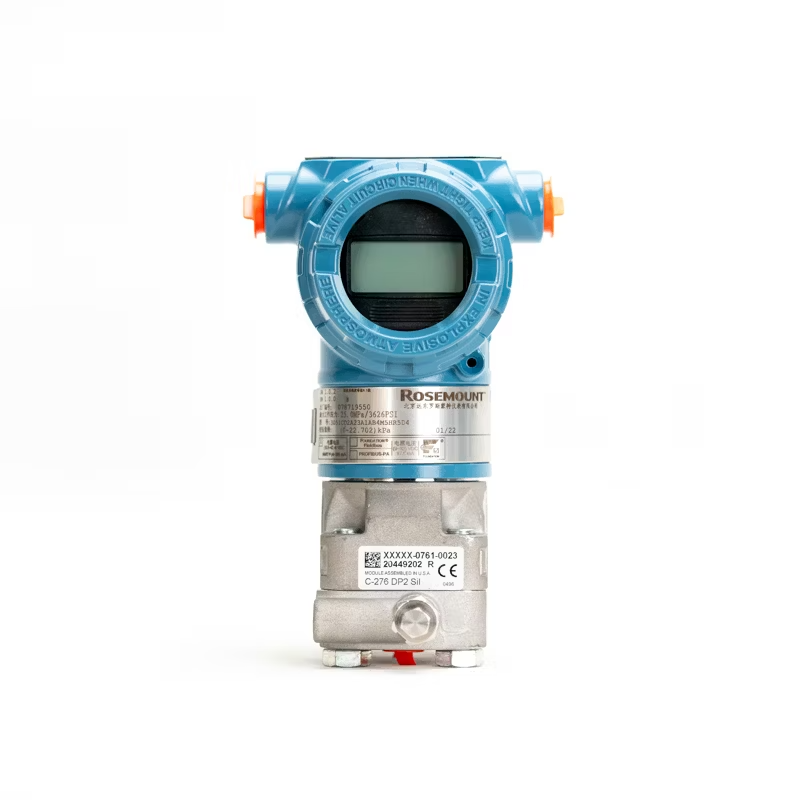

Emerson Rosemount 3051CD Smart Differential Pressure Transmitter
The Rosemount 3051CD differential pressure transmitter is precision-engineered for critical applications with a ±0.065% span accuracy and 100:1 rangeability. Ideal for HVAC, industrial, and medical sectors, it reliably measures differential pressures in ventilation, air conditioning, filtration systems, and more. Notable for its HART communication, diverse output configurations, and robust construction for durability in tough conditions.
The Rosemount 3051CD differential pressure transmitter is precision-engineered for critical applications with a ±0.065% span accuracy and 100:1 rangeability. Ideal for HVAC, industrial, and medical sectors, it reliably measures differential pressures in ventilation, air conditioning, filtration systems, and more. Notable for its HART communication, diverse output configurations, and robust construction for durability in tough conditions.

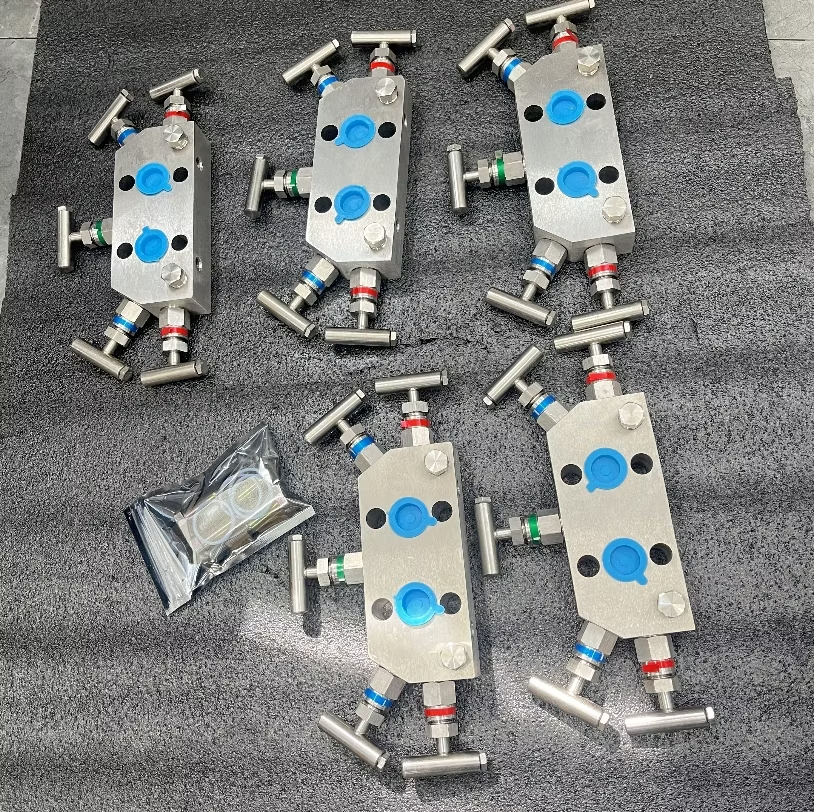

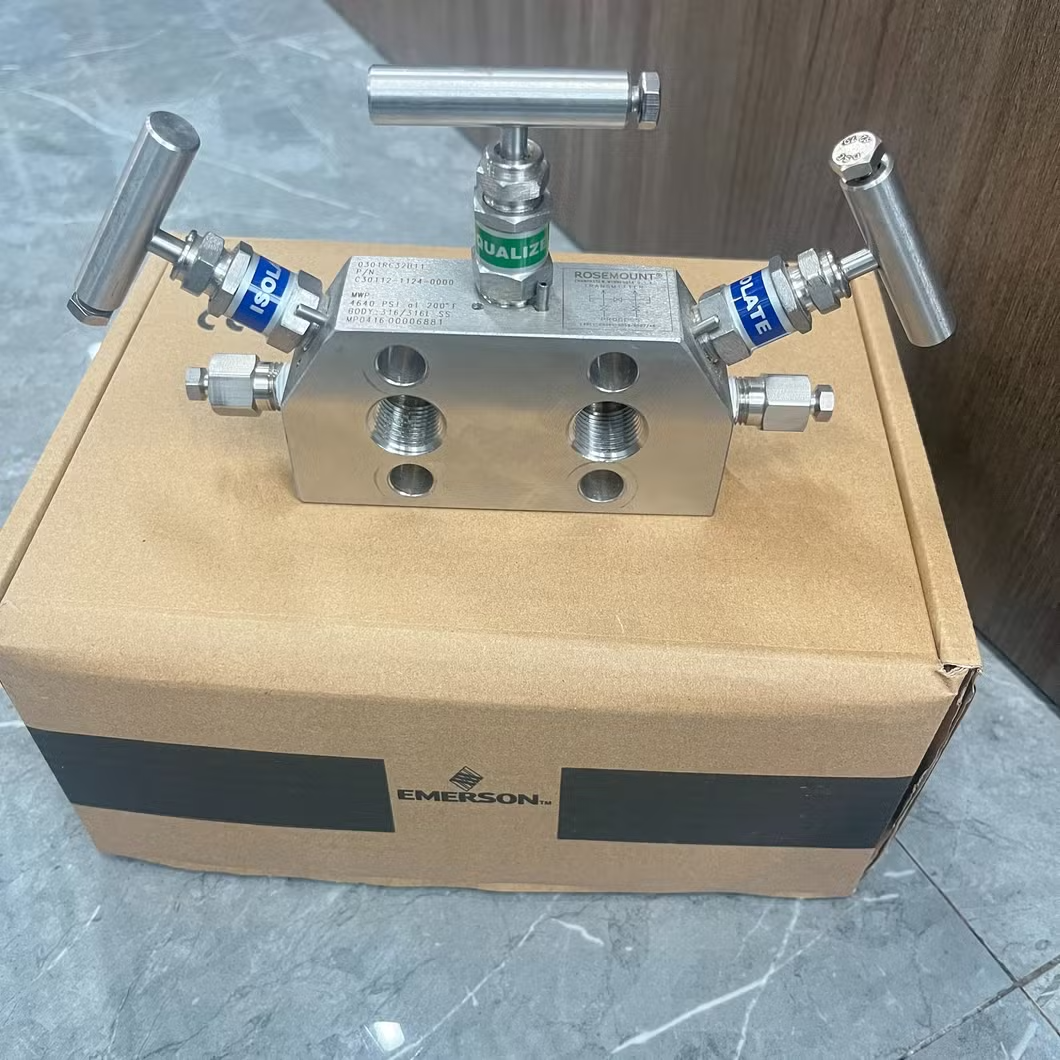

To meet your variety of manifold connection system needs, Rosemount Manifold deliver a diverse product offering that is easy to order, install, and operate. The portfolio includes a wide variety of styles, materials of construction, and valving configurations to address almost any application. Purchasing a Rosemount Manifold with your Rosemount Pressure Transmitter can provide you with highest amount of value. When you bundle these two products, you'll receive a fully assembled, calibrated, and leak-tested solution that is ready for out-of-the-box installation.
1.Factory assembled, leak-tested, and calibrated2.Full breadth offering including integral, in-line, and conventional styles
3.Integral design enables flangeless connection to instrument reducing weight, space, and leak points
4.Block-and-bleed, two-, three-, and five-valve configurations
5.Compact, lightweight design
6.Easy in-process calibration
7.Direct-mount capability
8.Available in NACE® -compliant materials of construction
9.Available with Pressure-Lock™ Valve
3051CD1A02A1AS5B1E8M5D4+0305RC52B21 | 3051CD Differential Pressure Transmitter with Integral Manifold 0305 | Rosemount
Standard features
1.Assembled directly to transmitter, eliminating the need for a flange
2.Factory leak-tested and calibrated
3.Two-, three-, and five-valve configurations
4.Available with female NPT process connections
5. No exposed bolt configuration enhances reliability
6.Fifty percent fewer leak points than conventional transmitter to flange to manifold interface
7.Special cleaning options available
8.Available with five valve natural gas metering pattern
9.Available with IEC flanged, ½-in. NPT bottom and ½-in. NPT side entry process connections Rosemount R305 exclusive features
10.Pressure-Lock Valve with two-piece stem design
11.Large internal process bore to resist plugging
1.Assembled directly to transmitter, eliminating the need for a flange
2.Factory leak-tested and calibrated
3.Two-, three-, and five-valve configurations
4.Available with female NPT process connections
5. No exposed bolt configuration enhances reliability
6.Fifty percent fewer leak points than conventional transmitter to flange to manifold interface
7.Special cleaning options available
8.Available with five valve natural gas metering pattern
9.Available with IEC flanged, ½-in. NPT bottom and ½-in. NPT side entry process connections Rosemount R305 exclusive features
10.Pressure-Lock Valve with two-piece stem design
11.Large internal process bore to resist plugging
Rosemount Coplanar Manifolds provide a leak-checked and pressure-tested single point solution when assembled to Rosemount Pressure Transmitters. The coplanar platform reduces potential leak paths by 50 percent over conventional style process connections while also reducing overall connection system weight.
Product Parameters
Item | value |
Warranty | Other |
Customized support | OEM, ODM, OBM |
Place of Origin | United States |
Brand Name | ROSEMOUNT |
Model Number | 3051 |
Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
Warranty | Up to 5-year limited warranty |
Rangedown | Up to 150:1 |
Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
Measurement Range | Up to 2000 psi (137,89 bar) differential Up to 2000 psig (137,89 bar) gage Up to 4000 psia (275,79 bar) absolute |
Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics,Plugged Impulse Line Diagnostics |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications |
Wireless Update Rate | 1 sec. to 60 min., user selectable |
Power Module Life | Up to 10-year life, field replaceable (order separately) |
Wireless Range | Internal antenna (225 m) |
