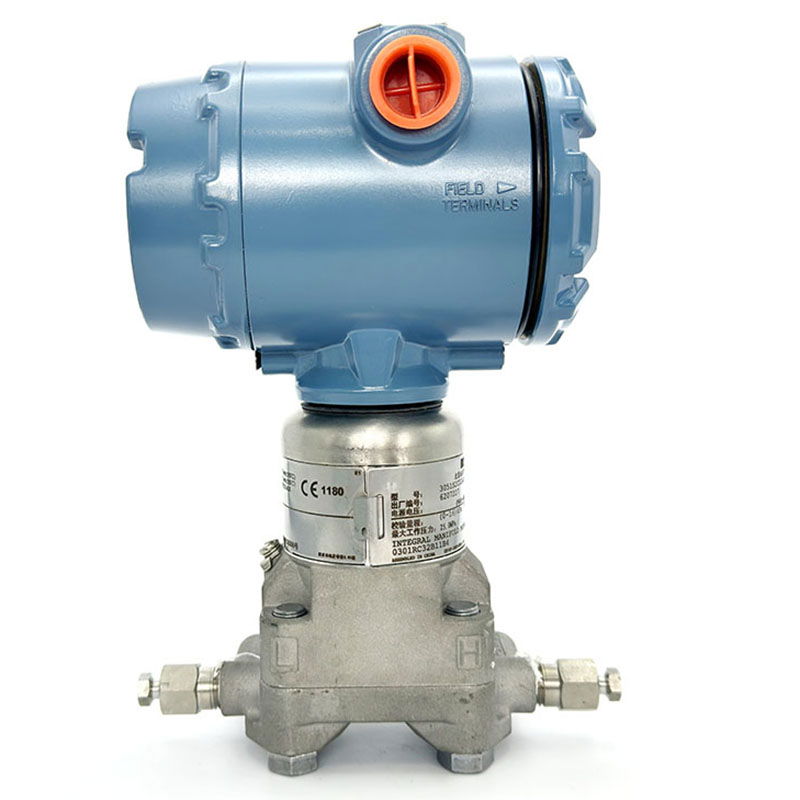

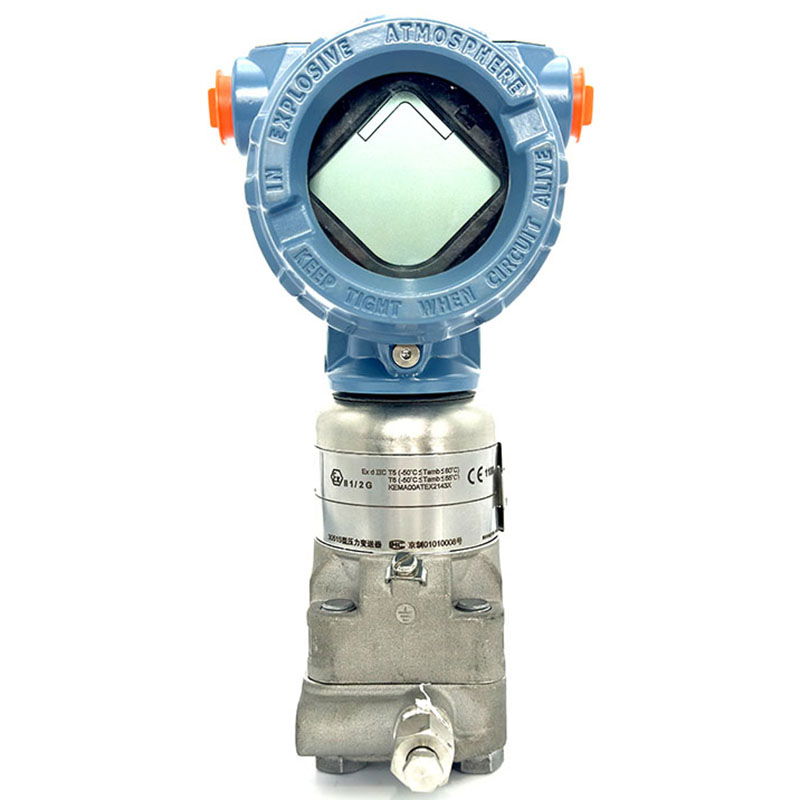

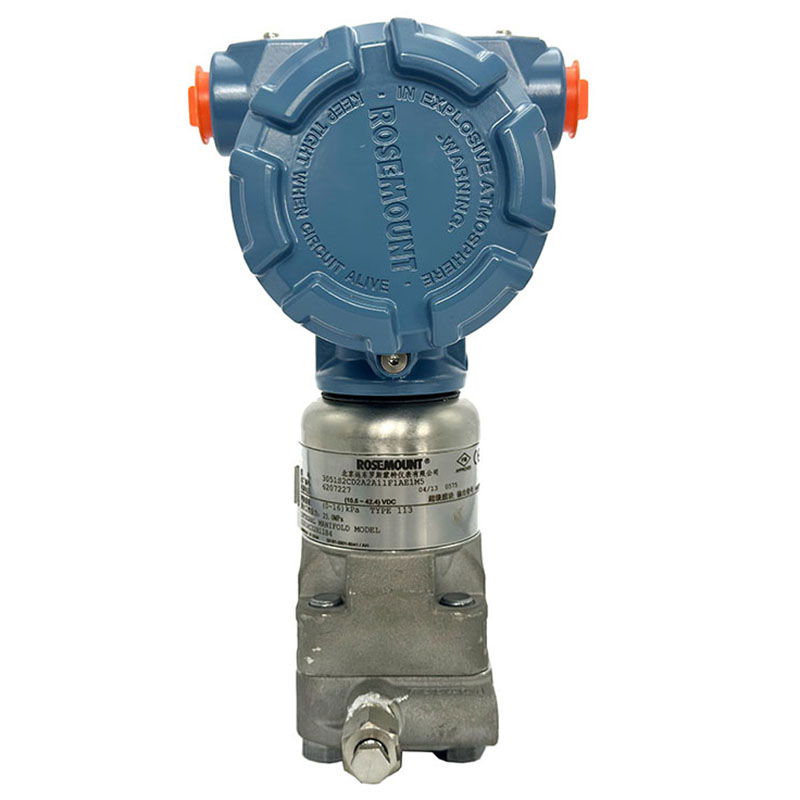

Rosemount™ 3051S Coplanar™ Pressure Transmitter

Features

Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution

Best-in-class, scalable architecture enhances performance, functionality and process connections

Transmitter arrives fully assembled and leak tested for simple installation and maintenance

All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy

Ultra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty

200:1 rangedown produce reliable measurements and wide application flexibility

Integrates seamlessly with 4-20 mA HART™, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility

SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions

Remote display and interface offers easy access to process and device information

Specifications

WarrantyUp to 15-year limited warranty

RangedownUp to 200:1

Communication Protocol4-20 mA HART, WirelessHART®, FOUNDATION fieldbus

Measurement RangeUp to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute

Process Wetted Material316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

DiagnosticsBasic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

Certifications/ApprovalsSIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications

Wireless Update Rate1 sec. to 60 min., user selectable

Power Module LifeUp to 10-year life, field replaceable (order separately)

Wireless RangeLong range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
