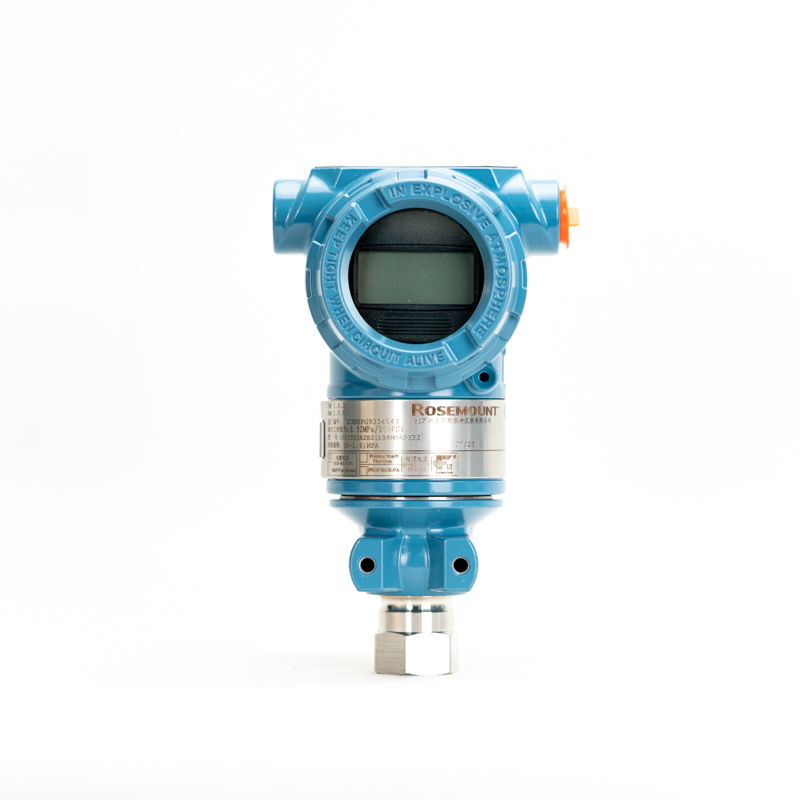

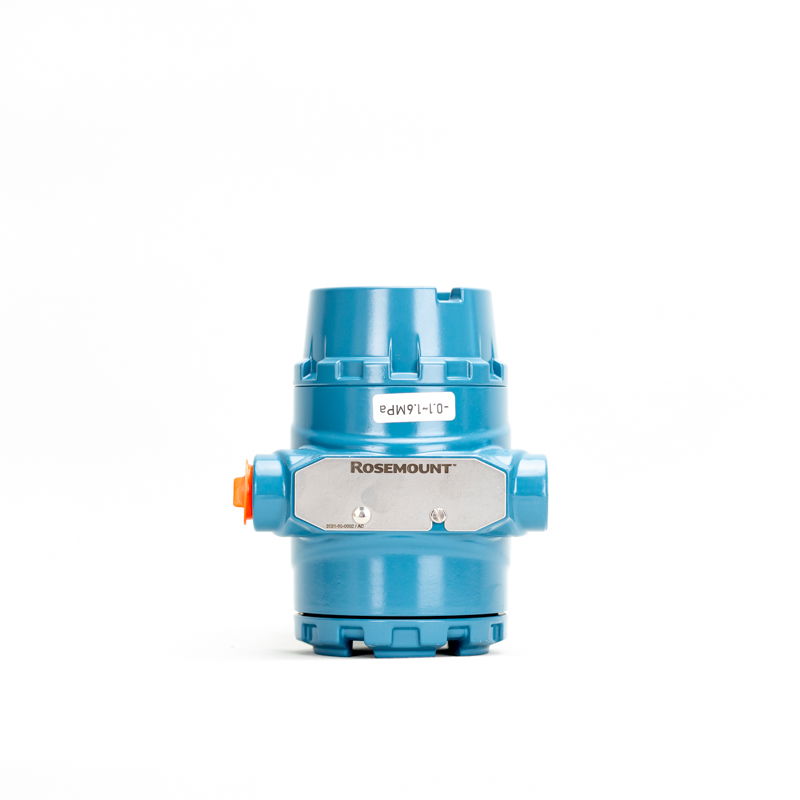

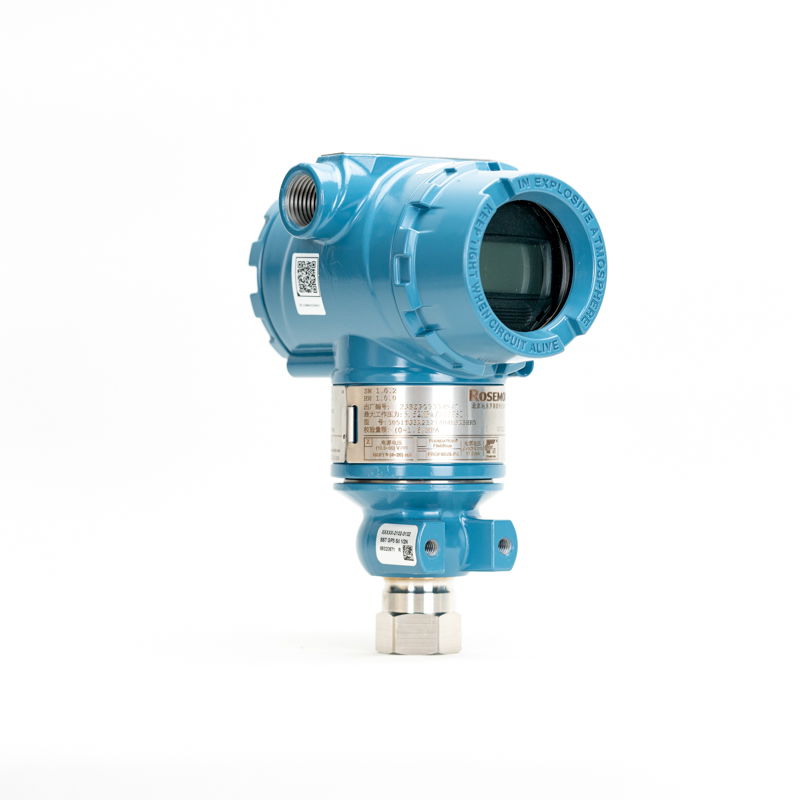

100% Original and New Emerson Rosemount 3051tg Pressure Transmitter for Automation Equipment

Rosemount 3051tg pressure transmitter, 3051ta absolute pressure transmitter integrates sensor, electronic technology and single isolation diaphragm design, and realizes the calibration range of gauge pressure and absolute pressure measurement from 0.3 to 10000 psi. Working principle of model 3051t pressure transmitter: when working, the isolation diaphragm and filling liquid at high and low pressure sides transfer the process pressure to the filling liquid, and then the filling fluid transfers the pressure to the sensing diaphragm in the sensor center. The sensing diaphragm of the 3051 pressure transmitter is a tensioned elastic element whose displacement varies with the pressure applied (for the 3051gp pressure transmitter, atmospheric pressure is applied to the low pressure side of the sensing diaphragm). 3051ap absolute pressure transmitter, the low pressure side always maintains a reference pressure. The large displacement of the sensing diaphragm is 0.004 inch (0.1 mm), and the displacement is proportional to the pressure. Capacitance plates on both sides detect the position of the sensing diaphragm. The capacitance difference between the sensing diaphragm and the capacitor plate is converted to the corresponding current, voltage or digital Hart (high speed addressable remote transmitter data highway) output signal.

Technical parameters:

Overall performance: ± 0.15% FS

Accuracy: ± 0.075% FS

Pressure: calibration range from 0.3 to 10000 psi

Gauge pressure: calibration range from 0.3 to 10000 psi

Stainless steel and Hastelloy CR process isolation diaphragm

Single diaphragm design

Filling fluid: silicone oil and inert oil

Optional din and autoclave compatible process connections

Product model: 3051TG1A 3051TG2A 305ATG3A 3051TG4A 3051TG5A.

Benefit from industry-leading capabilities and trusted performance with the Rosemount 3051 Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement.The 3051TG Rosemount pressure transmitter is designed for high reliability, long-term stability and easy maintenance. Rosemount pressure transmitters provide optimal measurement concepts from design to installation, maintenance to operation.

Product Parameters

Pressure range

code	3051TG	3051TA
0	-5 to 5 psi (-344.74 to 344.74 mbar)	N/A
1	-14.7 to 30 psi (-1.01 to 2.06 bar)	0 to 30 psia (0 to 2.06 bar)
2	-14.7 to 150 psi (-1.01 to 10.34 bar)	0 to 150 psia (0 to 10.34 bar)
3	14.7 to 800 psi (-1.01 to 55.15 bar)	0 to 800 psia (0 to 55.15 bar)
4	-14.7 to 4000 psi (-1.01 to 275.79 bar)	0 to 4000 psia (0 to 275.79 bar)
5	-14.7 to 10000 psi (-1.01 to 689.47 bar)	0 to 10000 psia (0 to 689.47 bar)
6	-14.7 to 20000 psi (-1.01 to 1378.95 bar)	0 to 20000 psia (0 to 1378.95 bar)
