Rosemount 475 hand communicator Battery

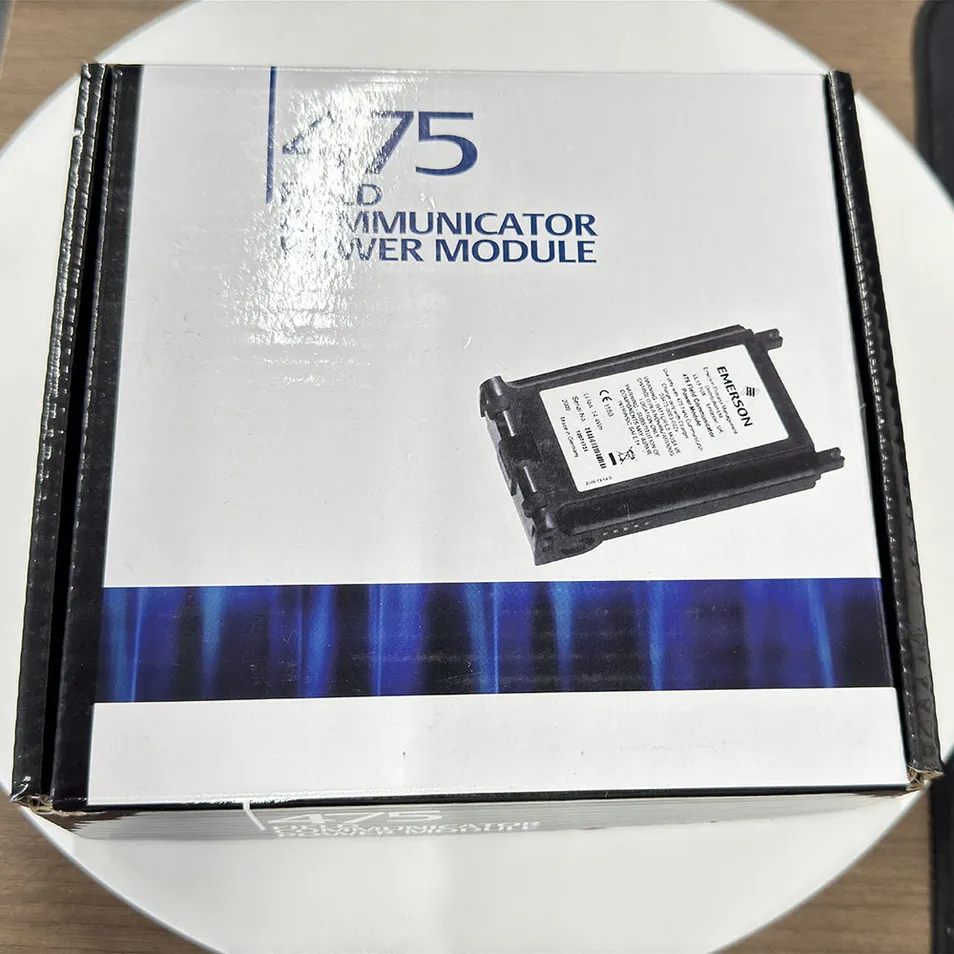

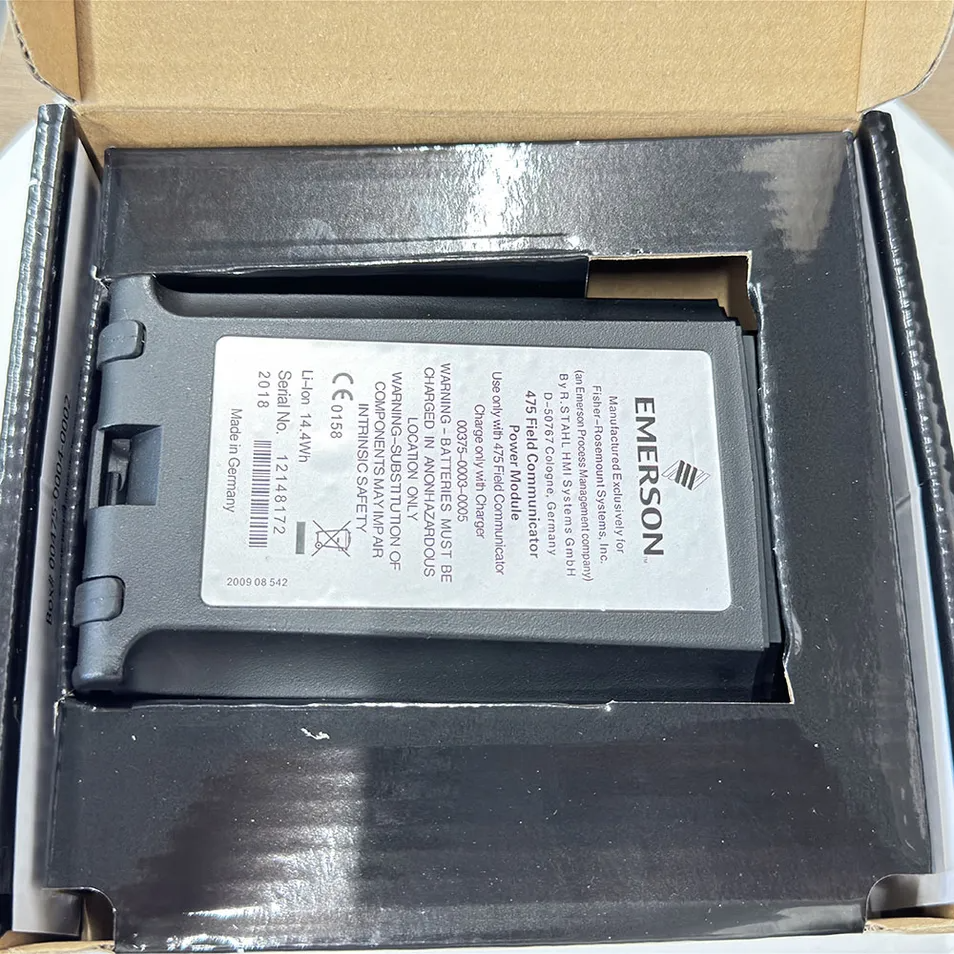

Emerson 00475-0002-0022 Rechargeable Battery Lithium-Ion Power Module for 475 Field Communicator
Product Description
Emerson 00475-0002-0022 Rechargeable Lithium-Ion Power Module
Specifications
Type: Rechargeable lithium - ion battery.
Operating Time: It can be used continuously for 20 hours, with a regular use time of 40 hours and a standby time of up to 80 hours.
Charging Voltage: The charger input voltage is 100 - 240VAC, 50 - 60Hz, with selectable plugs for the United States, Europe, and the United Kingdom.
Storage Temperature: The storage temperature range is - 20℃ to 55℃ with the battery and - 20℃ to 60℃ without the battery.
Type: Rechargeable lithium - ion battery.
Operating Time: It can be used continuously for 20 hours, with a regular use time of 40 hours and a standby time of up to 80 hours.
Charging Voltage: The charger input voltage is 100 - 240VAC, 50 - 60Hz, with selectable plugs for the United States, Europe, and the United Kingdom.
Storage Temperature: The storage temperature range is - 20℃ to 55℃ with the battery and - 20℃ to 60℃ without the battery.
Applications
Advantages and Features
Field Communication Device Power Supply: It is mainly used to power the 475 Field Communicator, enabling it to work in the field. It ensures the normal operation of the device during configuration, calibration, diagnosis, and data monitoring of HART - protocol - compliant intelligent transmitters and field - bus instruments, allowing users to complete various tasks in different industrial scenarios.
Portable Operation Support: The rechargeable lithium - ion battery provides the necessary power for the portable operation of the 475 hand - held device. Whether used in the field of petroleum, chemical, or metallurgical industries, it allows operators to move freely and use the hand - held device without being restricted by the power cord, improving work efficiency.
Portable Operation Support: The rechargeable lithium - ion battery provides the necessary power for the portable operation of the 475 hand - held device. Whether used in the field of petroleum, chemical, or metallurgical industries, it allows operators to move freely and use the hand - held device without being restricted by the power cord, improving work efficiency.
High Energy Density: The lithium - ion battery has a high energy density, which can provide sufficient power for the 475 hand - held device to work continuously for a long time, meeting the needs of users for long - time field operations. For example, in a continuous production process, it can ensure that the hand - held device is always in a working state without frequent charging.
Wide Temperature Range: It has a wide operating temperature range of - 10℃ to 50℃, which can adapt to different industrial environments2. Whether in high - temperature workshops or low - temperature outdoor environments, it can maintain good performance and ensure the normal operation of the 475 hand - held device.
Wide Temperature Range: It has a wide operating temperature range of - 10℃ to 50℃, which can adapt to different industrial environments2. Whether in high - temperature workshops or low - temperature outdoor environments, it can maintain good performance and ensure the normal operation of the 475 hand - held device.
Specification
Item | Details |
Type | Rechargeable lithium-ion battery |
Continuous Operation Time | 20 hours |
Regular Use Time | 40 hours |
Standby Time | Up to 80 hours |
Charging Voltage | 100–240VAC, 50–60Hz (with selectable plugs for US, EU, UK) |
Operating Temperature Range | -10°C to 50°C |
Storage Temperature Range | With battery: -20°C to 55°C Without battery: -20°C to 60°C |
Weight Contribution | Included in the total device weight (≈0.75 kg / 1.65 lbs) |
Charging Features | Supports fast charging; compatible with international voltage standards |
Safety & Design | Designed for intrinsic safety; rubber sleeve protection for impact resistance |
