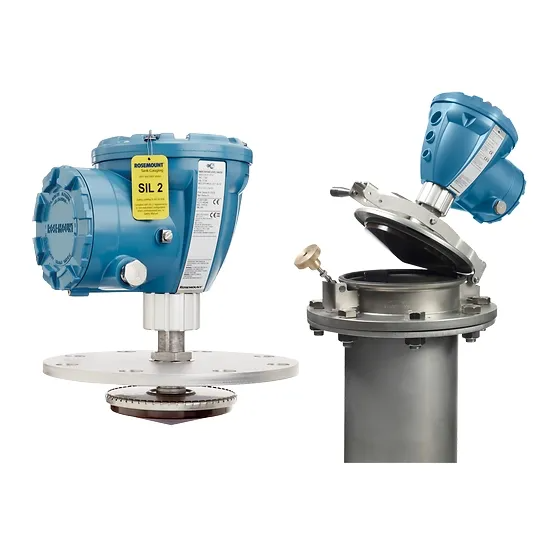

Rosemount™ 5900C Radar Level Gauge
Rosemount™ 5900C Radar Level Gauge
The 5900C Radar Level Gauge operates on the principle of microwave reflection. It emits high - frequency microwave signals, typically in the millimeter - wave range, towards the surface of the liquid within a container. These microwave signals travel through the air or vapor space above the liquid at the speed of light. Upon reaching the liquid surface, the signals are reflected back to the gauge. The time it takes for the microwave signals to travel to the liquid surface and return is precisely measured.The built - in advanced signal processing algorithms play a crucial role in this process. They filter out noise and interference, such as signals reflected from tank internals like baffles, stirrers, or from foam and vapor on the liquid surface. By analyzing the characteristics of the received echo signals, including their amplitude, phase, and time - delay, the gauge can accurately distinguish the true liquid surface reflection from false echoes, ensuring reliable and accurate level measurements even in complex and challenging environments.
The Rosemount 5900C Radar Level Gauge provides ± 1mm (0.04 in.) instrument accuracy. It is normally combined with high precision multiple spot temperature sensors for net volume calculations. It is SIL 2 certified according to IEC 61508.
Features
Get highest reliability for asset management of bulk liquid storage.
Achieve higher safety with third party certified IEC 61508 SIL 2 capability.
Benefit from convenient and safe installation with two-wire IS bus power supply.
Include wired and/or wireless data transmission.
Measure in all bulk storage tank types and products, ranging from liquefied gases, light products, crude oil and bitumen.
Achieve higher safety with third party certified IEC 61508 SIL 2 capability.
Benefit from convenient and safe installation with two-wire IS bus power supply.
Include wired and/or wireless data transmission.
Measure in all bulk storage tank types and products, ranging from liquefied gases, light products, crude oil and bitumen.
5900C
The 5900C Radar Level Gauge represents a pinnacle of innovation in the realm of liquid level measurement. Engineered by 5900C Radar Level Gauge, a leading force in industrial instrumentation, this state - of - the - art device combines cutting - edge radar technology with robust design and intelligent features, setting new standards for accuracy, reliability, and versatility in level measurement across diverse industries.
The 5900C Radar Level Gauge is renowned for its outstanding accuracy, which can reach up to ±5% of the measured range. This high level of precision is vital in industries where even the slightest error in liquid level measurement can lead to significant consequences. For instance, in pharmaceutical manufacturing, where precise dosing of raw materials is critical for product quality and safety
Specification
item | value |
Grade | Industrial |
Warranty | 1 Year |
Customized support | OEM |
Place of Origin | American |
Brand Name | Emerson/Rosemount |
Model Number | 5900C |
Material | 316/316L |
Mode | Radar Level Gauge |
Accuracy | ± 1mm (0.04 in.), ± 2mm (0.08 in.) |
Stability | Typically < ± 0.5 mm (0.020 in.) in -40 to +70 °C (-40 to +158 °F). |
Update Rate | New measurement every 0.3 second |
Safety | SIL 2 certified |
Emulation Capability | Possible to integrate with legacy tank gauging systems |
Power Supply | 9.0 - 30.0 VDC polarity insensitive |
Ambient Temperature | -40 to +70 °C (-40 to +158 °F) |
Antenna Type | Parabolic antenna, still-pipe array antenna... |
Operating Temperature | +180 °C (+356 °F)/ +230 °C (+445 °F) |
Measuring Range | 3 m (0.7 to 9.8 ft.)~ 12 m (0.7 to 39 ft.) |
