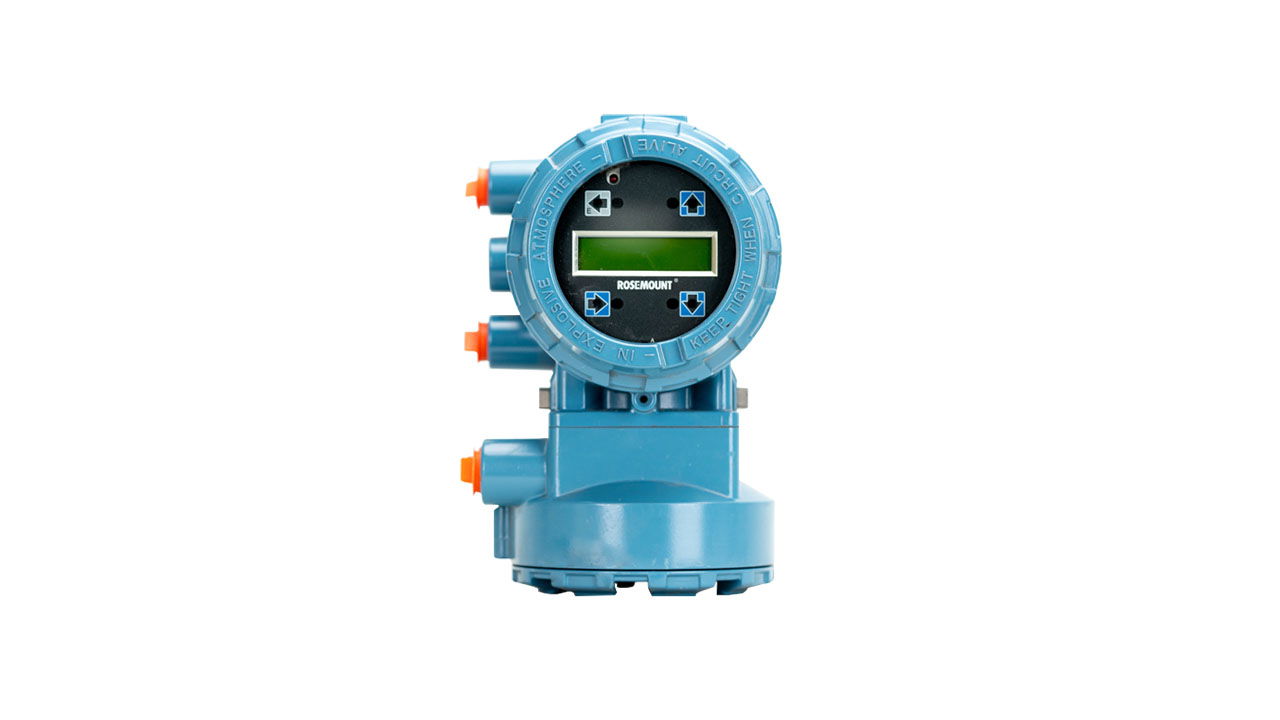

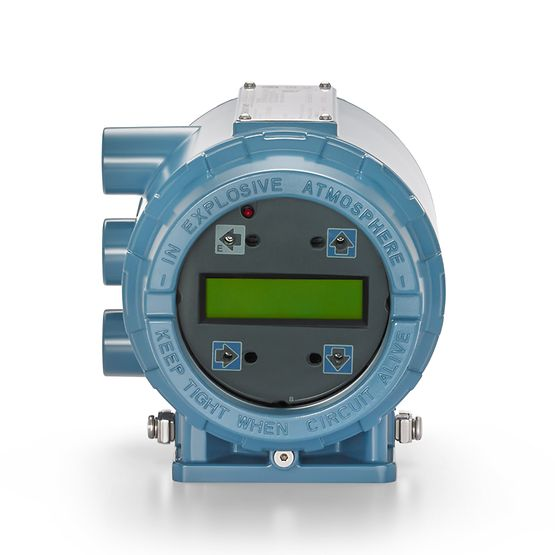

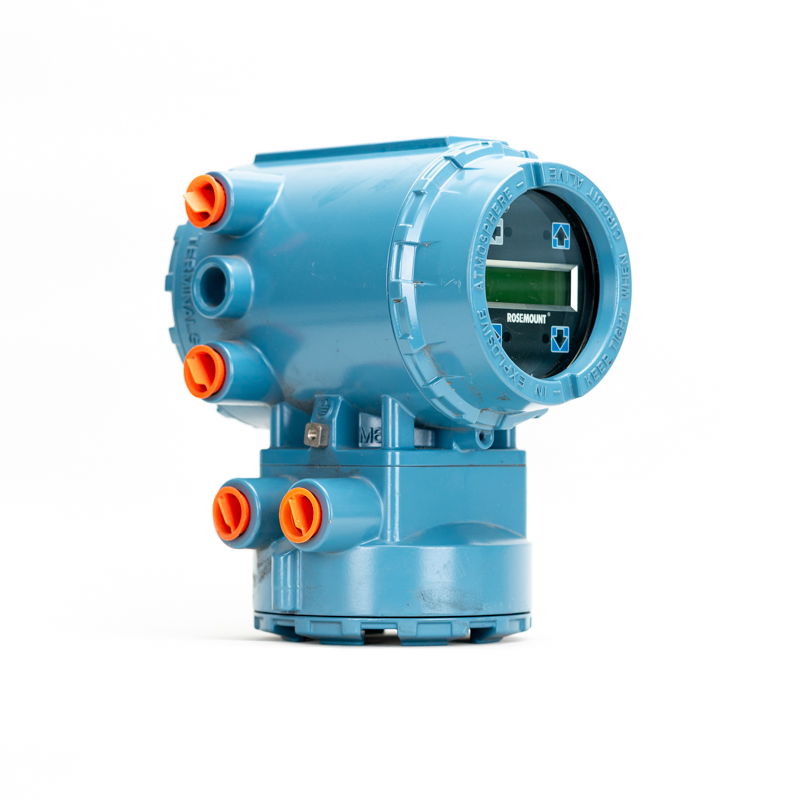

A dual-compartment transmitter housing provides isolation from the external environment. Advanced diagnostics and through-the-glass Local Operator Interface offer unparalleled process insight.

Specifications

Sensor compatibilityCompatible with Rosemount 8705, 8711, and 8721sensors. Compatible with AC and DC powered sensors ofother manufacturers.

Transmitter coil drive current500mA

Flow rate rangeCapable of processing signals from fluids that are travelingbetween 0.04 and 39 ft/s (0.01 to 12 m/s) for both forwardand reverse flow in all sensor sizes. Full scale continuouslyadjustable between –39 and 39 ft/s (–12 to 12 m/s).

Conductivity limitsProcess liquid must have a conductivity of5 microSiemens/cm (5 micromhos/cm) or greater.

Power supply90 - 250VAC, 50/60Hz or 12 - 42VDC

Line power fuses90-250VAC systems

1A, 250V, I2t, 1.5 A2s Rating, Fast ActingBussman AGC-1, Littlefuse 31201.5HXP

12-42VDC systems

3 Amp, 250V, I2t, 14 A2s Rating, Fast ActingBel Fuse 3AG 3-R, Littelfuse 312003P, Schurter 0034.5135

Line power fuses15W maximum - DC

40VA maximum - AC

Switch-on currentAC: Maximum 35.7A (< 5ms) at 250VAC

DC: Maximum 42A (< 5ms) at 42VDC

Features

Continually monitor meter health and performance without stopping the process with Smart Meter Verification

Prevent moisture ingress with dual-compartment transmitter housing

Improve process management with advanced Digital Signal Processing

Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options

Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty

Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic

Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration

Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
