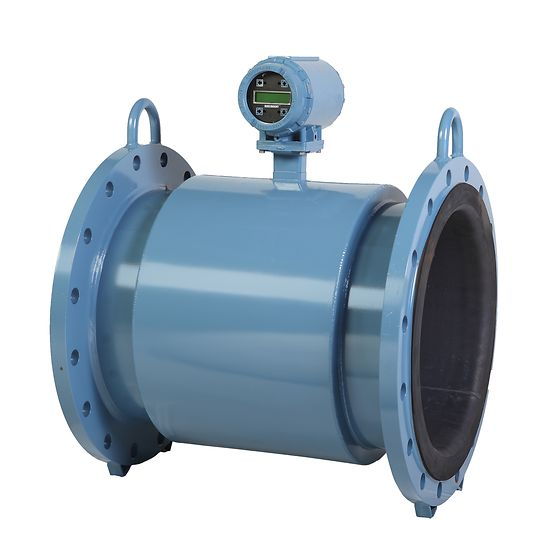

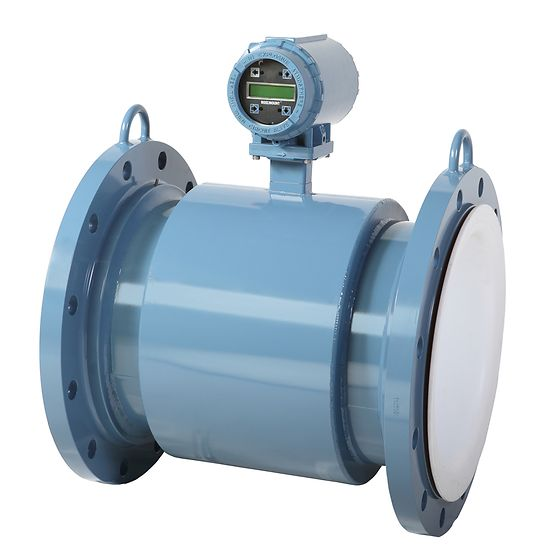

The Rosemount 8750W Magnetic Flow Meter reduces lifecycle costs and unplanned shutdowns by accurately measuring water and wastewater flows in a variety of utility applications. The 8750W is supported by intelligent diagnostics that help users take advantage of improved installation, maintenance and process-management practices. With fully welded sensor construction and an isolated, replaceable terminal block the 8750W is the most dependable meter available for utility and water applications.

Specifications

Line Size0.5" – 48" (15 mm – 1200 mm)

Liner MaterialPEX. PTFE, Neoprene

Electrode MaterialStainless Steel, Nickel Alloy

Flange StandardANSI, EN, GB , AS4087, AS2129, JIS , AWWA

Flange RatingUp to 300# / PN40 / 4.0Mpa / PN35 / Table E / 10K / Class D

AccuracyStandard 0.5%; Optional High Accuracy 0.25%

DiagnosticsEmpty Pipe, Grounding/Wiring Detection, High Process Noise, Coated Electrode Detection, Smart Meter Verification

Transmitter Output4-20 mA Digital Electronics (HART Protocol), Modbus RS485

Features

Maximize uptime with dual-compartment transmitter housing that isolates electronics from moisture and contamination

Rely on robust, fully welded construction designed to withstand sustained vibration

Confirm meter calibration without interrupting the process using continuous meter verification

Perform easy repairs in the field without the need to replace the entire meter with a replaceable terminal block

Advanced diagnostic capabilities and printed reports verify meter performance for compliance with regulatory agencies

Simplify configuration and accessibility with an easy-to-use Local Operator Interface
