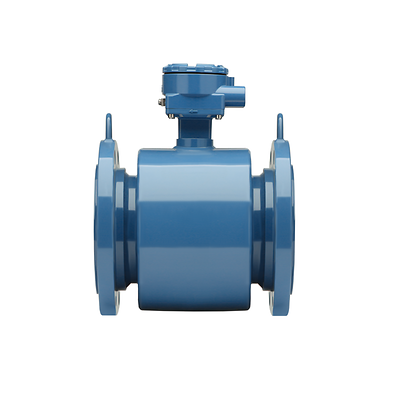

The MS Slurry Sensor is a robust solution for difficult to measure applications such as sand, high solid content fluids, long pulp fibers, or installations that generate excessive process noise. Designed with these difficult to measure applications in mind, the MS Slurry Sensor overcomes common flow signal challenges to deliver a stable yet responsive flow output.

Specifications

AccuracyUp to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown

Line Sizes3-36 inch (80-900 mm)

Liner MaterialsPEX, PTFE, ETFE, PFA+, Polyurethane, Neoprene, Linatex Natural Rubber Electrode Materials 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium PEX, PTFE, ETFE, PFA+, Polyurethane, Neoprene, Linatex Natural Rubber Electrode Materials 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium

Flange RatingsASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (30-36 inch only)

Flange RatingsSubmergence Protection

Features

Reduce sensor inventory with a dual calibration option

Ensure reliability in the harshest environments with an all-welded sensor housing

Guard against installation damage and leading-edge wear with optional lining protectors

Minimize maintenance and repair with an obstructionless design featuring no moving parts, ideal for metering conductive slurries

Increased signal strengths allows for more precise flow measurement and reduce process variability even in hard to measure flows when paired with the 8782 transmitter

Capability to handle extremely noisy applications while delivering stable flow outputs better than a standard magnetic flow meter when paired with the 8782 transmitter

Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field

Capture any potential process fluid leakage with optional secondary containment compartments
