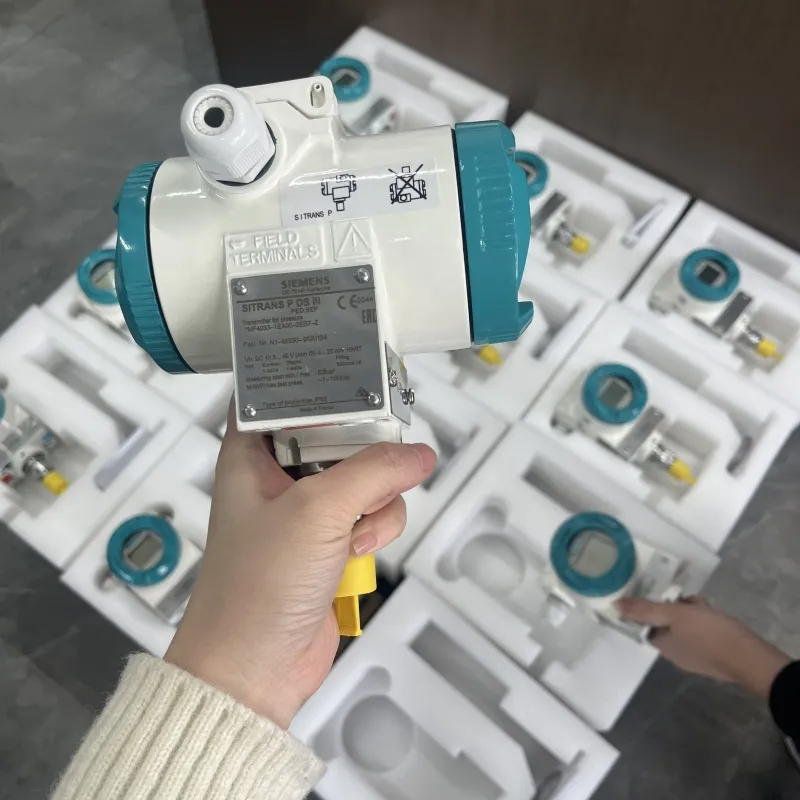

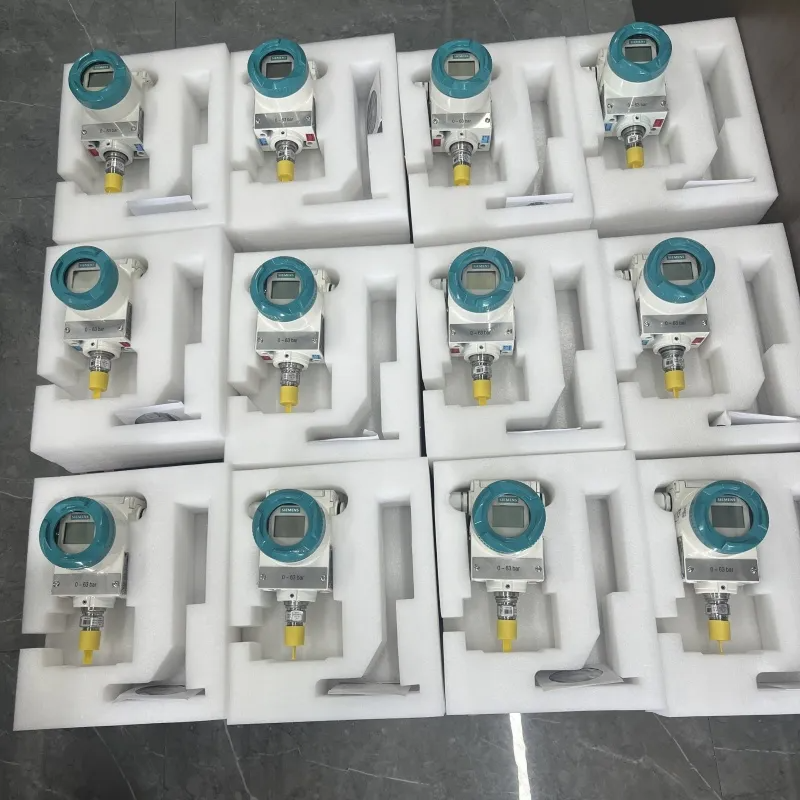

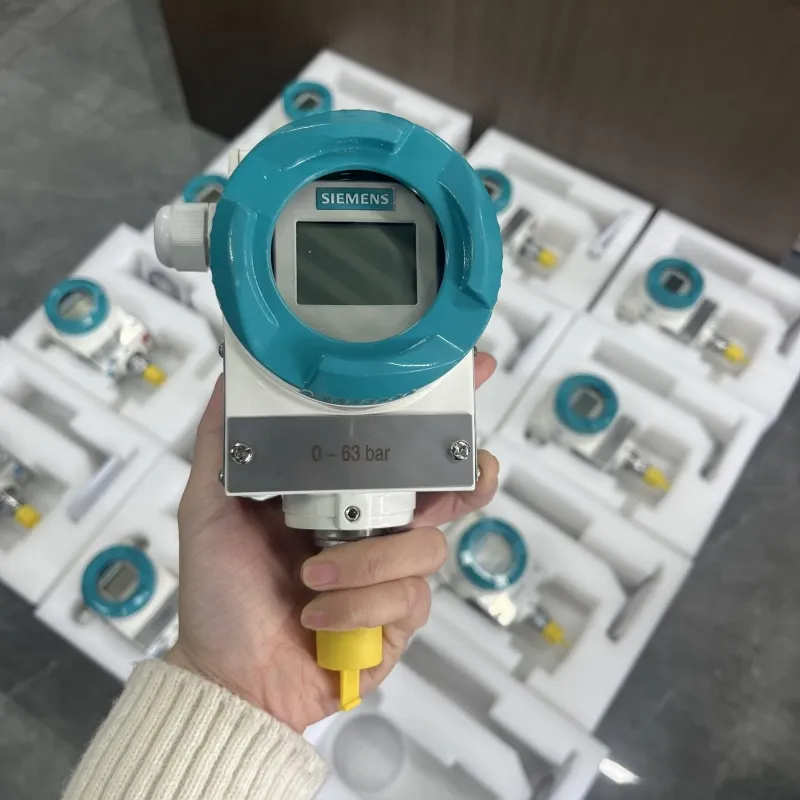

Siemens Sitrans P Ds III P410 7mf4033 Differential Pressure Transmitter
Product Description
Siemens SITRANS P DS III Differential Pressure Transmitter
The Siemens 7MF4033 1EA00+ SITRANS P DS III Pressure Transmitter is a user friendly and highly accurate digital transmitter. The 7MF4033 Pressure Transmitter is simple to use, but comes with a wide range of options. This extensive functionality allows the 7MF4033 to be precisely adapted to your requirements.
7MF4033 Pressure Transmitter Benefits
High quality and long service life
Reliability under extreme chemical and mechanical loads
Suitable for both aggressive and non-aggresive gasses, vapors and liquids
Extensive diagnosis and simulation functions
Wetted parts made from high grade materials such as stainless steel
High measuring accuracy
Reliability under extreme chemical and mechanical loads
Suitable for both aggressive and non-aggresive gasses, vapors and liquids
Extensive diagnosis and simulation functions
Wetted parts made from high grade materials such as stainless steel
High measuring accuracy
Product Description
SITRANS P DS III / P410, HART,4-20 mA transmitter for pressure ****************************** Attention, product canceled / successor product P320/P420 available! Please get in touch with your Siemens contact to determine the successor product ****************************** Measuring cell filling silicone oil, normal cleaning Span: 0,01 ... 1 bar g (0.15 ... 14.5 psi g), overload limit 6 bar Version for diaphragm pressure controller. Consider additional delivery time for Remote seal. Remote seals must be ordered with an additional article no. Process connection: connection shank G1/2 B to EN 837-1 Die-cast aluminium housing International design english inscription and documentation as cd None explosion protection Electric connection and cable inlet: cable gland 1/2-14 npt Housing cover with window
Application
Industrial Pressure Measurement: According to relevant information, it can be used to measure the pressure of corrosive and non - corrosive media, including gases, liquids and steam1. It is suitable for industrial fields such as mechanical engineering, shipbuilding, power engineering, and the chemical industry1. For example, in chemical plants, it can measure the pressure of various chemical media in pipelines; in power plants, it can be used to measure the pressure of steam in boilers or the pressure of cooling water systems.
Level and Flow Measurement: The 7MF4033 transmitter can be used for level measurement of non - corrosive and corrosive gases, steam and liquids, and can also be used for flow measurement in some cases7. It can be connected to various remote - seal assemblies, which is convenient for special application scenarios such as high - viscosity materials.
Level and Flow Measurement: The 7MF4033 transmitter can be used for level measurement of non - corrosive and corrosive gases, steam and liquids, and can also be used for flow measurement in some cases7. It can be connected to various remote - seal assemblies, which is convenient for special application scenarios such as high - viscosity materials.
Specification
item | Specifacation |
Model | 7MF4033 |
Measurement Principle | Piezoresistive |
Measured Variable | Relative pressure (gauge pressure), can also be used for differential pressure and flow measurement in some cases |
Measuring Range | 0 - 10 mbar (0 - 0.4 inchH2O) to 0 - 400 bar (0 - 5800 psi), specific ranges like 0.01 - 1 bar, 0.04 - 4 bar, etc. are also available, with a range ratio of 100:1 |
Accuracy | ≤ 0.075% |
Long - term Stability | ≤ 0.25% / 5 years, actual measurement < 0.1% / 5 years |
Output Signal | 4 - 20 mA, voltage output signal (only when measuring range ≥ 1 bar (14.5 psi)) is 0 - 10 V DC |
Power Supply | For current output, the terminal voltage is 10 - 36 V DC |
Communication Options | HART, PROFIBUS PA, PROFIsafe or FF |
Diagnostic Function | Has extensive diagnostics and simulation functions |
Safety Certification | Suitable for installation in SIL 2 applications in accordance with IEC 61508 / IEC 61511, with certifications such as ATEX EEx ia, EEx ib, dust protection, FM, CS, etc. |
Nominal Pressure | There are specifications of 470 psi, 2325 psi, 6090 psi, etc. |
Process Temperature Range | For process temp. - 20 °C < < 60 °C; for process temp. +60 °C < < 100 °C (maximum + 85 °C for 435 psi measuring cell) |
