VEGA VEGAPULS64 Radar Level Meter
VEGA VEGAPULS 64 Radar Level Sensor
VEGA Level Sensors
Level Sensor VEGA VEGAPULS 64
VEGA VEGAPULS 64 radar level sensor provides continuous level measurement of aggressive liquids under difficult process conditions, including those within storage tanks, process vessels, dosing vessels and reactors providing exact measuring results independent of pressure, temperature, gas or steam.

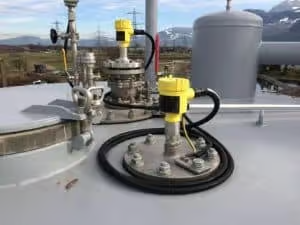

Vega Vegapuls 64 Sensor Installed With Isolation Valve

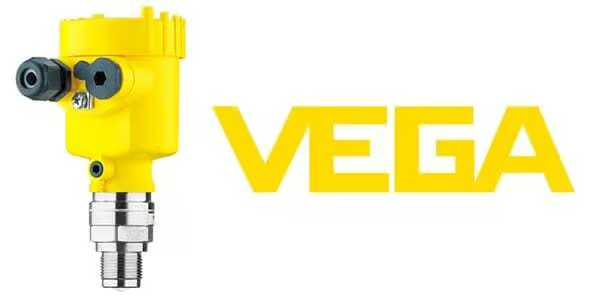

VEGA VEGAPULS 64 Radar LEVEL SENSOR
PRODUCT SPECIFICATIONS
| Measuring Range – Distance | Process Temperature | Level Sensor Accuracy | Level Sensor Protection Rating | Ambient Temperature | Hazardous Area ATEX Level Sensor |
| 30 m | -40 – 200°C | ±2mm | IP66/IP68 (0.2 bar) IP66/IP67 + IP66/IP68 (1 bar) | -40 to 80 °C | Yes, VEGA VEGAPULS 64 is suitable for hazardous areas
(see ATEX download). |
Application area
VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, VEGAPULS 6X offers a reliable and economical solution for all level applications. Due to its variable antenna systems, it ensures maintenance-free operation in all applications.
Your benefit
- Exact measuring results independent of process conditions
- Maintenance-free operation through non-contact measuring principle
- Application-oriented configuration enables a simple device selection
