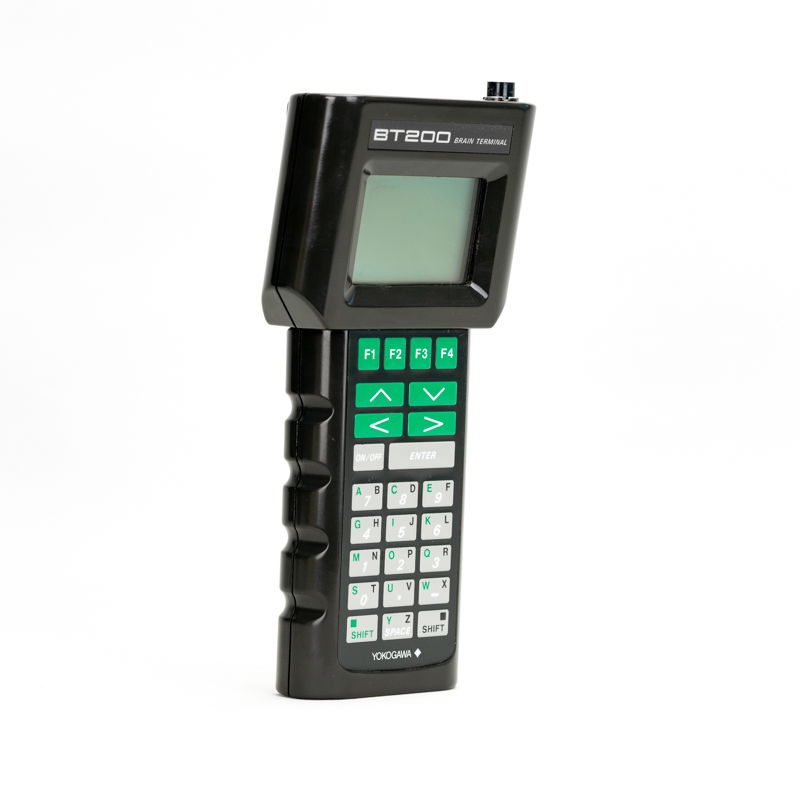

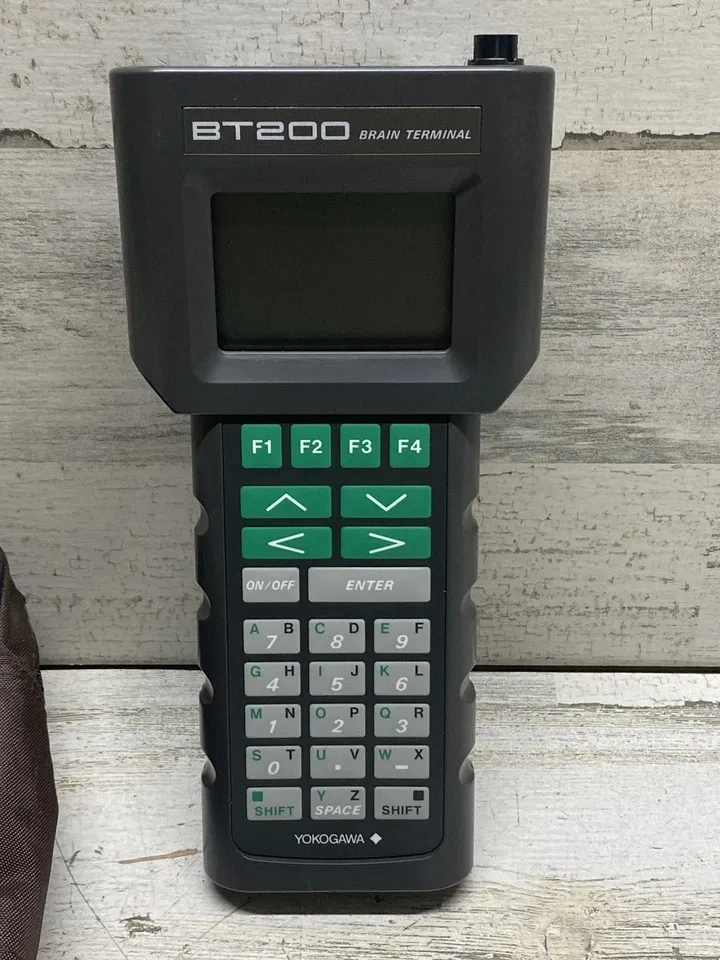

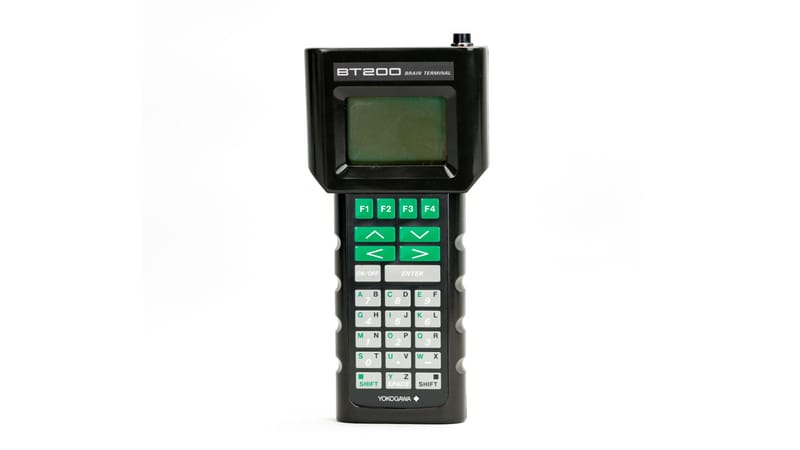

Yokogawa bt200 Brain Terminal Communicator
Yokogawa Bt200-N/P-00 Brain Terminal Handheld Field Communicator
FEATURES
Online monitoring and communication
The modulated communication signal does not interrupt the 4 to 20 mA DC signals duringcommunication.
Common to all Yokogawa's equipment
The Model BT200 BRAIN TERMINAL works with all equipment that uses BRAIN communication.
Easy of use
A large display (21 characters by 8 lines) eases setup and alteration procedures in English prompting interactive
Common to all Yokogawa's equipment
The Model BT200 BRAIN TERMINAL works with all equipment that uses BRAIN communication.
Easy of use
A large display (21 characters by 8 lines) eases setup and alteration procedures in English prompting interactive
sequences.
Diagnostics/security with error messages
• Self-check function
• Security code protection of setpoints
• Low battery voltage alarm
• Automatic power-off
Printer (BT200-P00)
Printer prints out tag numbers and other parameters on the spot.
• Self-check function
• Security code protection of setpoints
• Low battery voltage alarm
• Automatic power-off
Printer (BT200-P00)
Printer prints out tag numbers and other parameters on the spot.
Intrinsic safety (Only for a without printer type)
CSA intrinsically safe approval.
CSA intrinsically safe approval.
Advantage:
Wide Compatibility: It can communicate with multiple Yokogawa devices that use the BRAIN protocol, reducing the need for different configuration tools for different devices.
Comprehensive Functions: It integrates parameter setting, monitoring, diagnosis, and printing functions, which can meet various needs in the process of device operation and maintenance.
High Reliability: With functions such as self - diagnosis and setpoint protection, it can ensure the stable operation of the device and the security of data.
Portability: It is lightweight and easy to carry, which is convenient for on - site operation and maintenance personnel to use.
Specification
Display | LCD dot matrix, 21 characters × 8 lines |
Control | Membrane switches (4 function keys, 20 general keys, and 1 power switch) |
Printing (BT200 - P00) | Thermal printing |
Power Supply | Five 1.5V AA dry alkaline batteries |
Communication Line | Length: up to 2 km Load resistance: 250 - 600Ω (including cable resistance) Load capacitance: 0.22μF or less Load inductance: 3.3 mH or less Distance from power cord: 15 cm or more (avoid parallel wiring) |
Dimensions | BT200 - N00: 228×110×51 mm BT200 - P00: 321×110×61 mm |
Approximate Weight | BT200 - N00: 510 g BT200 - P00: 700 g |
Ambient Temperature | BT200 - N00: - 15 - + 55℃ BT200 - P00: 0 - + 50℃ |
Ambient Humidity | BT200 - N00: 5 - 95% at 40℃ (to avoid condensation) BT200 - P00: 30 - 85% at 40℃ (to avoid condensation) |
EMC Conformity Standards | EN 61326 - 1 Class A, Table 2 (for use in industrial locations), EN 61326 - 2 - 3 |
