Yokogawa EJA110A Differential Pressure Transmitter

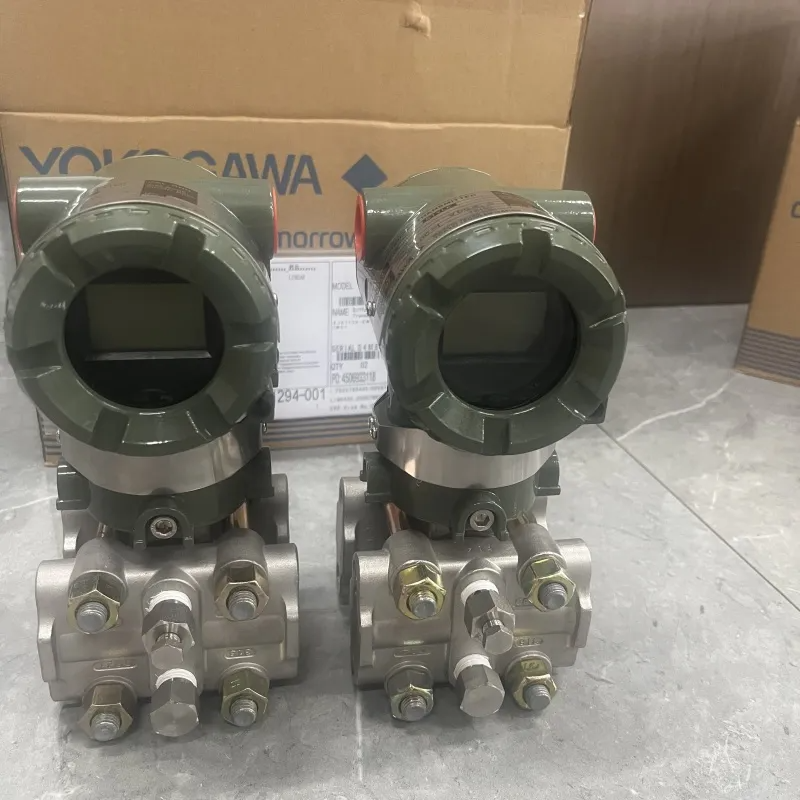

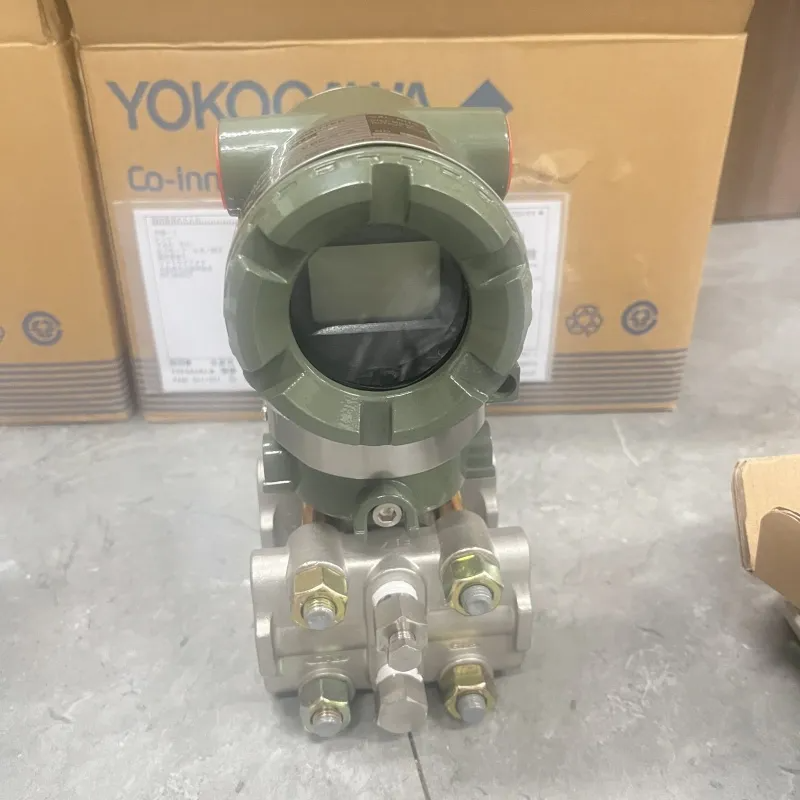

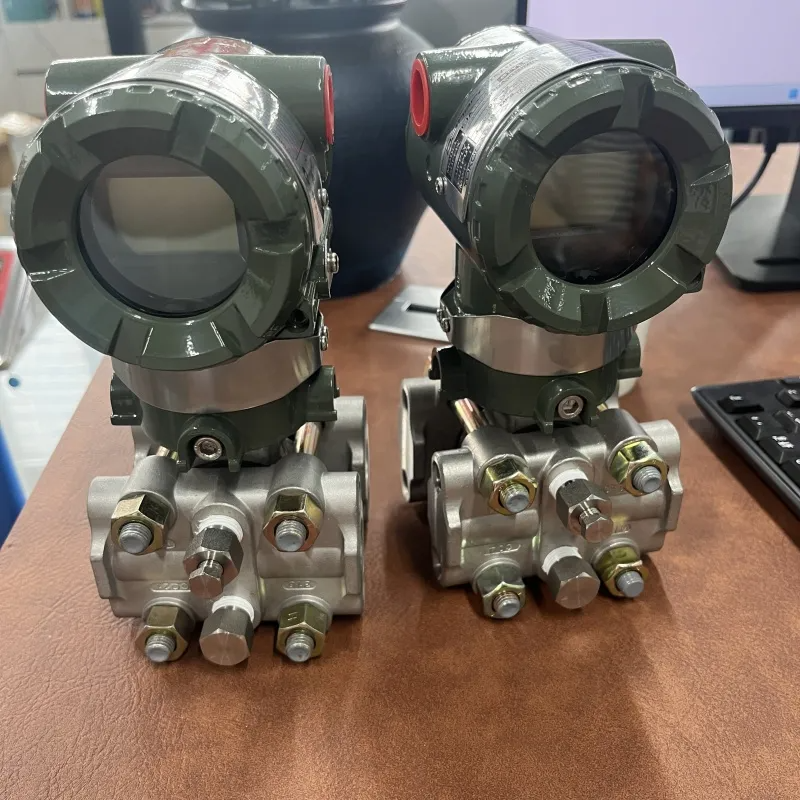

Original New Yokogawa Eja110A Differential Pressure Transmitter
Product Description
YOKOGAWA Differential Pressure Transmitter EJA110A
The high performance differential pressure transmitter model EJA110A can be used to measure liquid, gas, or steam flow as well as liquid level, density and pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.
Model EJA110A also features remote setup and monitoring through communications with the BRAIN™terminal and CENTUM CS™ or µXL™ or HART® 275 hos
Model EJA110A also features remote setup and monitoring through communications with the BRAIN™terminal and CENTUM CS™ or µXL™ or HART® 275 hos
The EJA-A series is Yokogawa's most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.
The EJA110A is the Traditional-mount Differential Pressure Transmitters in the series.
Applications
Flow Measurement: It can be used to measure the flow rate of liquids, gases, and steam. By measuring the differential pressure across a flow - measuring element such as an orifice plate or venturi tube, the flow rate can be calculated. It is widely used in industries such as oil & gas, power, and specialty & fine chemical.
Liquid Level Measurement: The EJA110A is suitable for measuring the liquid level in tanks. By measuring the differential pressure between the top and bottom of the tank, the liquid level can be determined, which is applicable in chemical, water & wastewater treatment industries.
Density Measurement: It can also be used to measure the density of liquids. The differential pressure measured is related to the density of the liquid, which is useful in some chemical and industrial processes where density monitoring is crucial.
Liquid Level Measurement: The EJA110A is suitable for measuring the liquid level in tanks. By measuring the differential pressure between the top and bottom of the tank, the liquid level can be determined, which is applicable in chemical, water & wastewater treatment industries.
Density Measurement: It can also be used to measure the density of liquids. The differential pressure measured is related to the density of the liquid, which is useful in some chemical and industrial processes where density monitoring is crucial.
Benefits
Enhanced Operational Efficiency: The high accuracy and stability of the EJA110A contribute to more accurate process control, which helps optimize production processes, reduce waste, and improve overall operational efficiency.
Reduced Maintenance Costs: Its long - term stability means less frequent calibration and maintenance, resulting in reduced maintenance costs and downtime. The self - diagnostic function can also quickly identify potential problems, facilitating timely maintenance.
Improved Safety: The EJA110A has an inherently safe design and can be used in hazardous environments. In addition, the accurate measurement and reliable operation it provides help ensure the safe operation of industrial processes.
Flexible System Integration: The fieldbus communication capability allows for easy integration with other devices and systems in the industrial automation network, providing convenience for system expansion and upgrading
Reduced Maintenance Costs: Its long - term stability means less frequent calibration and maintenance, resulting in reduced maintenance costs and downtime. The self - diagnostic function can also quickly identify potential problems, facilitating timely maintenance.
Improved Safety: The EJA110A has an inherently safe design and can be used in hazardous environments. In addition, the accurate measurement and reliable operation it provides help ensure the safe operation of industrial processes.
Flexible System Integration: The fieldbus communication capability allows for easy integration with other devices and systems in the industrial automation network, providing convenience for system expansion and upgrading
Specification
Item | valve |
Measured Medium | Liquid, gas, steam |
Measuring Range | -10 - 10 kPa |
Measuring Span | 0.5 - 10 kPa |
Output Signal | 4 - 20 mA DC, with FOUNDATION Fieldbus or PROFIBUS PA two - wire digital communication |
Power Supply | BRAIN and HART: 10.5 - 42 V DC (intrinsically safe: 10.5 - 30 V DC) |
Accuracy | ±0.065% of span (M, H, V capsules); ±0.075% (L capsule) |
Stability | ±0.1% of URL per 5 years (M, H, V capsules); ±0.2% of URL per 1 year (L capsule) |
Overpressure Impact | ±0.03% of URL / 16 MPa {2300 psi} (M, H, V capsules) |
Static Pressure Impact | ±(0.07% span + 0.052% URL) / 3.4 MPa {500 psi} (L capsule); ±(0.1% span + 0.028% URL) / 6.9 MPa {1000 psi} (M, H, V capsules) |
Environmental Temperature Impact | ±(0.08% span + 0.09% URL) (L capsule); ±(0.07% span + 0.02% URL) (M capsule); ±(0.07% span + 0.015% URL) (H capsule); ±(0.07% span + 0.03% URL) (V capsule) |
Material of Wetted Parts | Diaphragm capsule: SUS316L (diaphragm: Hastelloy C - 276) |
Mounting Method | Traditional - mount |
Communication Protocol | Supports BRAIN, HART, FOUNDATION Fieldbus, PROFIBUS PA communication protocols |
