YOKOGAWA EJA310E Traditional-mount Absolute Pressure Transmitter
Yokogawa EJA310E Traditional-mount Absolute Pressure Transmitter
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

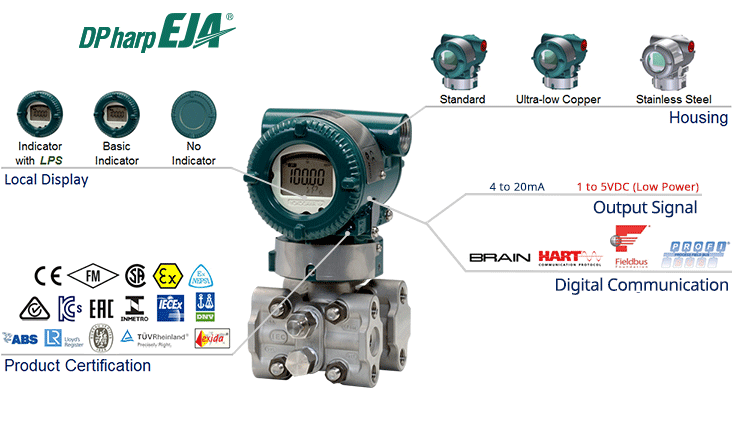

The EJA310E is our traditional-mount absolute pressure transmitter in the series.
EJA310E standard features include:
- ± 0.1% Accuracy
- ± 0.2% Stability for 10 years
- 90 ms Response Time
- Exida and TUV SIL 2/3 Certified
- 3,600 psia Maximum Over Pressure (MWP)
- Local Parameter Setting (LPS)
EJA310E Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
| Measurement Types | |
|---|---|
| Reference Accuracy | |
| Stability (All Normal Operating Conditions) | |
| Response Time | |
| Rangeability | |
| Burst Pressure (Absolute) | |
| Specification Conformance | |
| Primary Variable | Absolute Pressure |
| Primary Variable | ±0.15% of Span (L-Capsule) ±0.1% of Span (M, A, and B Capsule) |
| Primary Variable | ±0.2% of URL per 10 year |
| Primary Variable | 90ms |
| Primary Variable | L-Capsule: 15:1 M-Capsule: 100:1 A and B Capsule: 115:1 |
| All Capsules | 10,000 psi |
| EJA-A Series | ±3σ |
