Yokogawa Eja510e in-Line Mount Absolute Pressure Transmitter

Product Description

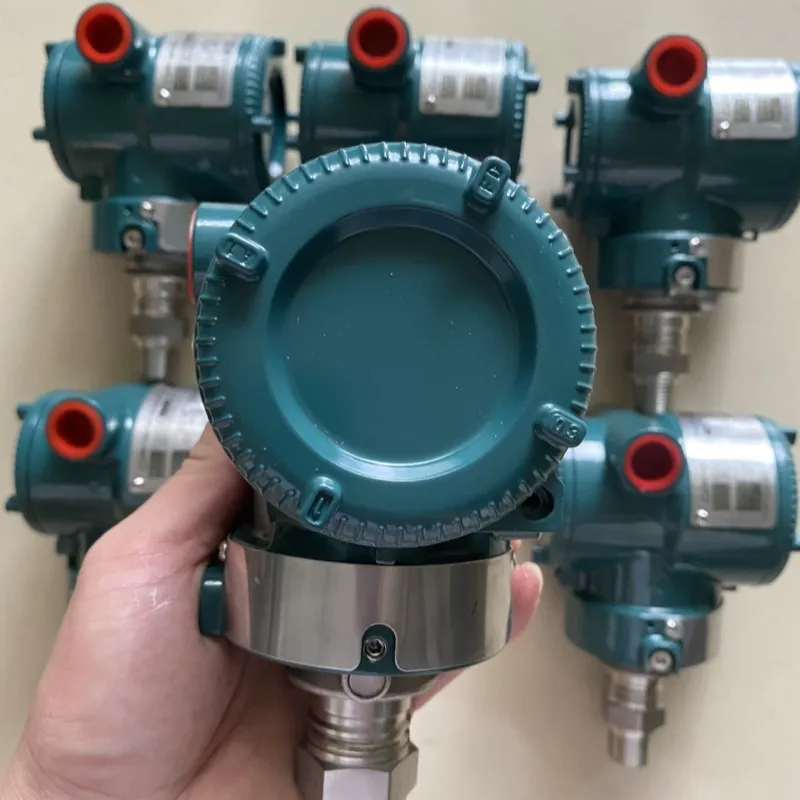

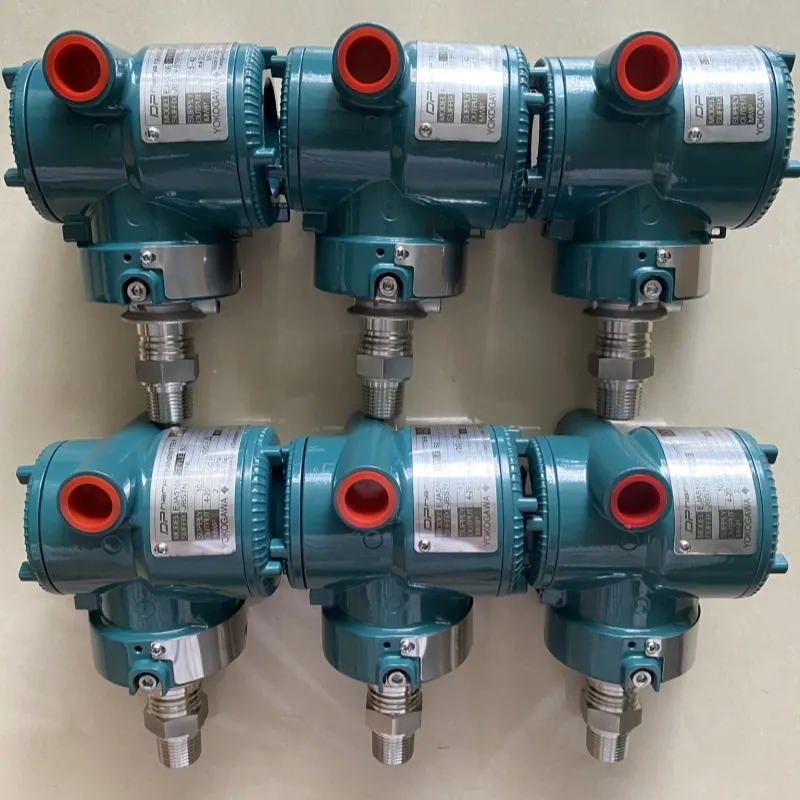

YOKOGAWA EJA510E In-Line Mount Absolute Pressure Transmitter

The high performance absolute and gauge pressure transmitter EJA510E and EJA530E feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. EJA510E and EJA530E output a 4 to 20 mA DC signal corresponding to the measured pressure. It also
features quick response, remote setup and monitoring via BRAIN or HART communications and selfdiagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.

Features

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA510E is our in-line mount absolute pressure transmitter in the series.

EJA510E features include:

± 0.055% Accuracy (0.04% Accuracy optional)
± 0.2% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
8,700 psia Maximum Over Pressure
Local Parameter Setting (LPS)

Applications

Industrial Process Monitoring: In various industrial production processes, such as chemical, petrochemical, and power industries, it is used to monitor the absolute pressure of process fluids. For example, in chemical reaction vessels, it can measure the absolute pressure inside the vessel to ensure that the reaction proceeds under the correct pressure conditions, helping operators to control the process and prevent safety accidents caused by over - pressure or under - pressure

Flow Measurement: It can be used in conjunction with other devices for flow measurement. According to the principle of fluid mechanics, there is a certain relationship between pressure and flow. By measuring the absolute pressure, and combining with parameters such as pipeline diameter and fluid properties, the flow rate of the fluid in the pipeline can be calculated, so as to realize the monitoring and control of the flow.

Specification

Item	valve
Type	In - line mount absolute pressure transmitter
Measuring Principle	Monocrystalline silicon resonant sensor technology
Measurable Media	Liquids, gases, vapors
Accuracy	±0.055% of span (±0.04% optional for /HAC specification)
Stability	±0.2% URL/10 years
Pressure Range	A, B and C capsules: 0 - 30 MPa (4350 psi); D capsule: 0 - 132 MPa (19100 psi)
Response Time	90 ms
Output Signal	4–20 mA DC (with HART 5/7, BRAIN protocol); HART (1–5V DC) low - power type; FF fieldbus; PROFIBUS PA
Power Supply	10.5–42 V DC for general and explosion - proof types; 10.5–32 V DC with surge arrester (option code /A); 10.5–30 V DC for intrinsically safe, n - type, non - flammable types
Communication Protocols	HART 5/7, HART (1–5V DC) low - power, FF fieldbus, PROFIBUS PA, BRAIN
Temperature Range	Operating: - 40°C to +120°C; Storage: - 40°C to +150°C
Temperature Effect	±(0.15% of span + 0.15% of URL) per 28°C change for A, B and C capsules; ±(0.15% of span + 0.15% of 50 MPa) per 28°C change for D capsule
Protection Level	IP66/IP67, NEMA 4X
Explosion Protection	Certified for ATEX, FM, CSA, IECEx, etc.
Process Connections	Threaded connections, flanges, etc. (specific types refer to model and specification code table)
Diaphragm Materials	Refer to model and specification code table
Self - Diagnosis Functions	40 self - diagnosis functions, including patented real - time reverse check
Display	Built - in display, can show measured data, alarm codes, bar charts, etc., 5 - digit number display, 6 - digit unit display
Mounting	Direct mounting on process pipes
