Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter
YOKOGAWA EJA530E In-Line Mount Gauge Pressure Transmitter
Product Description

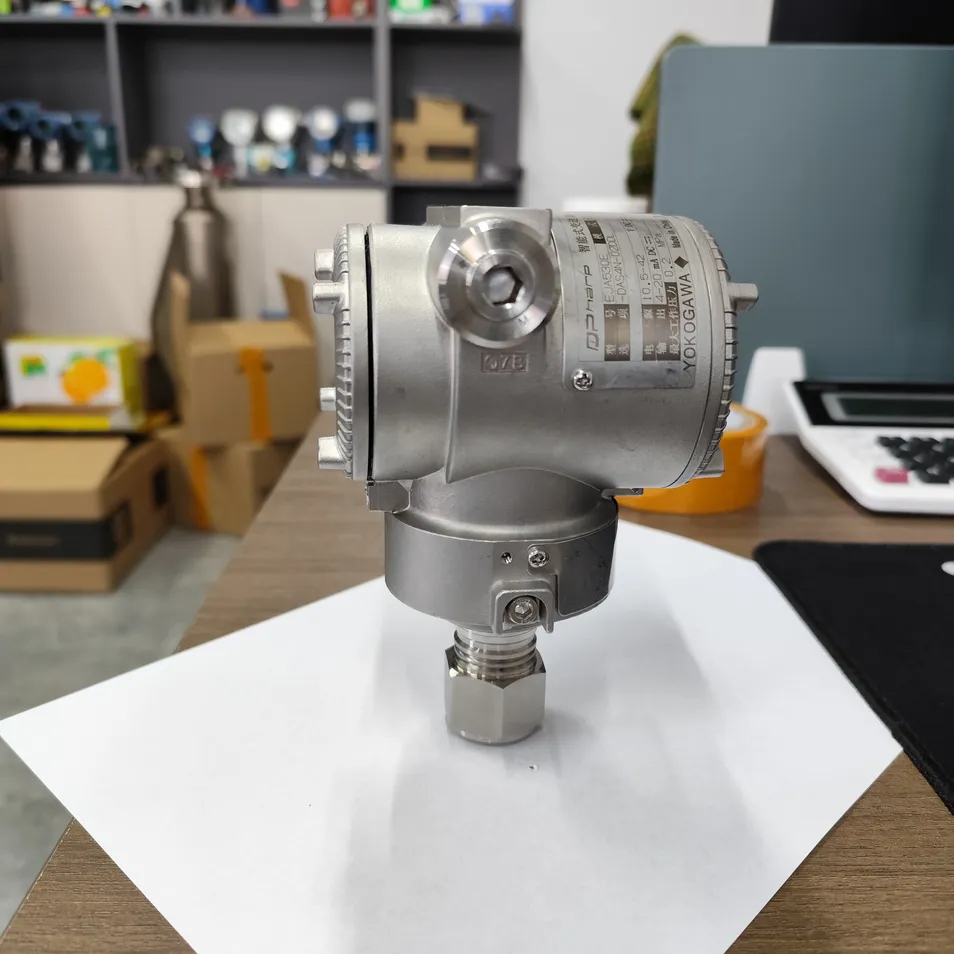

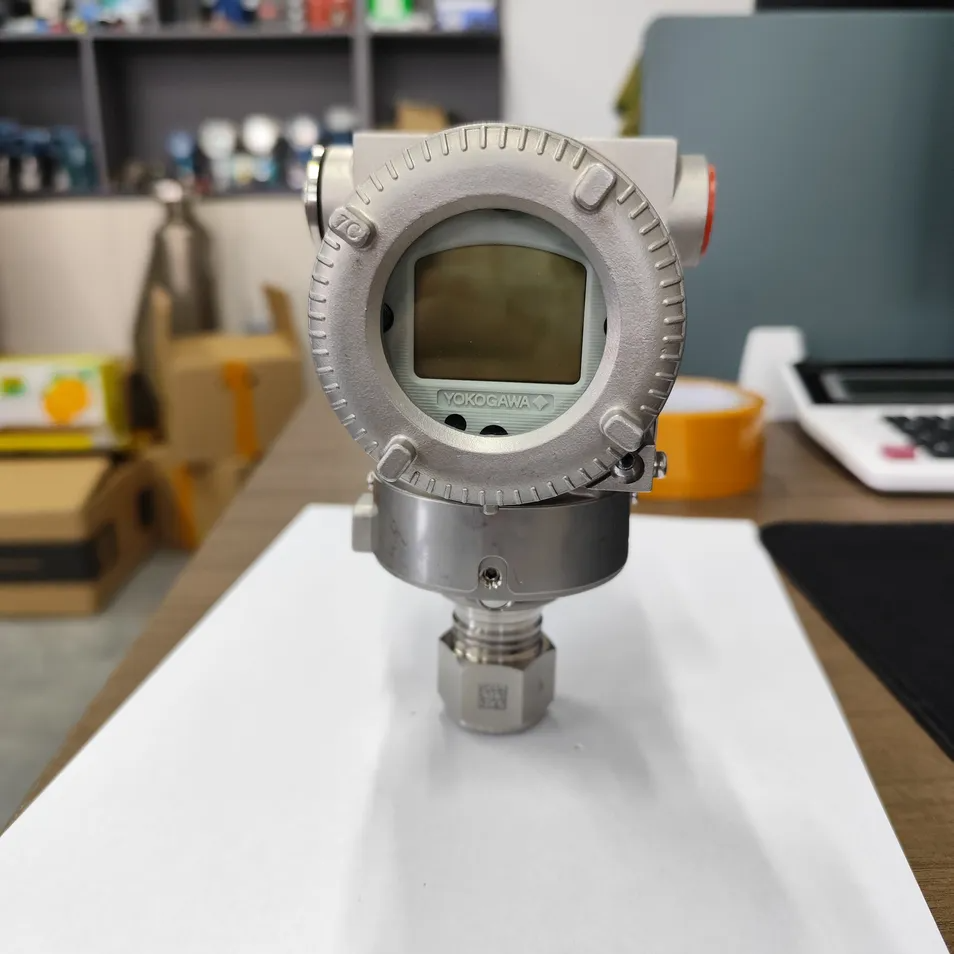

YOKOGAWA EJA530E In-Line Mount Gauge Pressure Transmitter
The high performance absolute and gauge pressure transmitter EJA510E and EJA530E feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. EJA510E and EJA530E output a 4 to 20 mA DC signal corresponding to the measured pressure. It also
features quick response, remote setup and monitoring via BRAIN or HART communications and selfdiagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
features quick response, remote setup and monitoring via BRAIN or HART communications and selfdiagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
Applications
Process Control: It is used in various industrial production processes to monitor and control pressure, ensuring the stable operation of the production process.
Pipeline Monitoring: Can be used to monitor the pressure in pipelines, timely detect pipeline blockages, leaks and other problems.
Pipeline Monitoring: Can be used to monitor the pressure in pipelines, timely detect pipeline blockages, leaks and other problems.
Level Measurement: In some cases, it can be used for level measurement, such as calculating the liquid level height according to the pressure of the liquid in the tank.
Gas Flow Measurement: It is used in gas flow measurement systems, and measures the flow by measuring the pressure of gas.
Aerospace Applications: It can be applied to some pressure measurement links in the aerospace field, and provides reliable data support for related equipment operation.
Gas Flow Measurement: It is used in gas flow measurement systems, and measures the flow by measuring the pressure of gas.
Aerospace Applications: It can be applied to some pressure measurement links in the aerospace field, and provides reliable data support for related equipment operation.
Benefits
High Measurement Accuracy: The use of advanced monocrystalline silicon resonant sensor technology and DPharp digital sensor technology can reduce errors, providing users with accurate and reliable pressure measurement results, which is crucial for ensuring product quality and production safety.
Strong Adaptability: With a wide temperature range (-40℃ to 120℃) and a protection level of IP66/IP67, it can work stably in various harsh environments. In addition, a variety of process connections (such as threads, flanges and tri - clamp joints) are available, which can meet the needs of different installation occasions
Strong Adaptability: With a wide temperature range (-40℃ to 120℃) and a protection level of IP66/IP67, it can work stably in various harsh environments. In addition, a variety of process connections (such as threads, flanges and tri - clamp joints) are available, which can meet the needs of different installation occasions
Good Compatibility: A variety of communication protocols are supported, which can be seamlessly connected with various control systems, facilitating the integration of the device into different industrial automation systems, and having good compatibility and expandability
Specification
Item | valve |
Type | In-line mount gauge pressure transmitter |
Measuring Principle | Monocrystalline silicon resonant sensor technology |
Measurable Media | Liquids, gases, vapors |
Accuracy | ±0.055% of span |
Stability | ±0.1% URL/10 years |
Pressure Range | -100 kPa to 20 MPa (gauge pressure, specific ranges vary by model) |
Response Time | 90 ms (at 90% step change) |
Output Signal | - 4–20 mA DC (with HART 5/7 protocol) - HART (1–5V DC) low-power type - FF fieldbus - PROFIBUS PA - BRAIN protocol |
Power Supply | - For 4–20 mA: 10.5–42 V DC (HART: 16.4–42 V DC) - For low-power HART: 5–24 V DC - For FF fieldbus: 9–32 V DC - For PROFIBUS PA: 9–32 V DC |
Communication Protocols | HART 5/7, HART (1–5V DC) low-power, FF fieldbus, PROFIBUS PA, BRAIN |
Temperature Range | - Operating: -40°C to +120°C - Storage: -40°C to +150°C |
Temperature Effect | ±0.2% of span/55°C (compensated within -20°C to +85°C) |
Protection Level | IP66/IP67 |
Explosion Protection | - Ex d (flameproof), Ex ia (intrinsic safety), Ex nA (non-incendive), etc. (certified for various hazardous areas) |
Process Connections | - Threaded: 1/2 NPT, R1/2, G1/2, etc. - Flanged: DN15–DN100 (ANSI, JIS, DIN standards) - Tri-clamp (sanitary connections for food/medical applications) |
Diaphragm Materials | Stainless steel (316L), Hastelloy C-276, Monel, tantalum, etc. |
Self-Diagnosis Functions | 40+ functions, including CPU failure, hardware failure, configuration error, pressure/diaphragm temperature over-limit alarm |
Display | Built-in LCD display (independent circuit, programmable to show measured values, alarm codes, bar charts, etc.) |
Mounting | Direct mounting on process pipes, or via flanges/threaded connections |
