Yokogawa EJX120A Draft Range Differential Pressure Transmitter
EJX120A Draft Range Differential Pressure Transmitter
The EJX-A series is Yokogawa's premium perforamnce line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

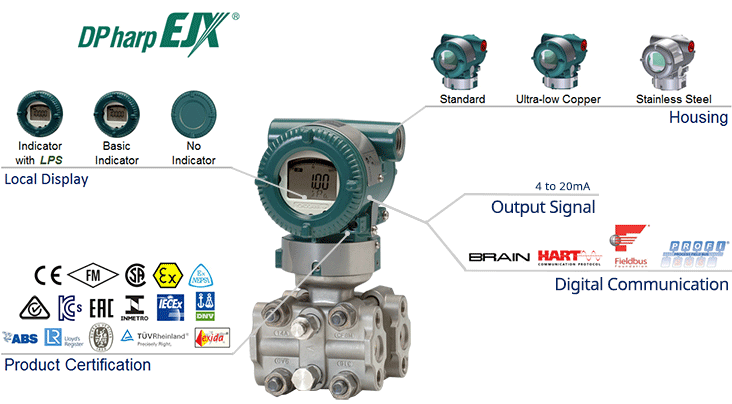

The EJX120A is the traditional-mount Draft Range Pressure Transmitter in the series.
EJX120A feature include:
- ± 0.09% Accuracy
- ± 0.15% per 1 year Stability
- 150 ms Response Time
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
- True Draft Range design
EJX120A Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
| Measurement Types | |
|---|---|
| Reference Accuracy | |
| Response Time | |
| Long Term Stability | |
| Rangeability | |
| Primary Variable | Differential Pressure (Draft Range) |
| Primary Variable | ±0.09% of Span |
| Primary Variable | 150 msec |
| Primary Variable | ±0.15% of URL per 1 year |
| Primary Variable | 40:1 |
