Yokogawa EJX530A In-Line Mount Gauge Pressure Transmitter
YOKOGAWA EJX530A In-Line Mount Gauge Pressure Transmitter
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

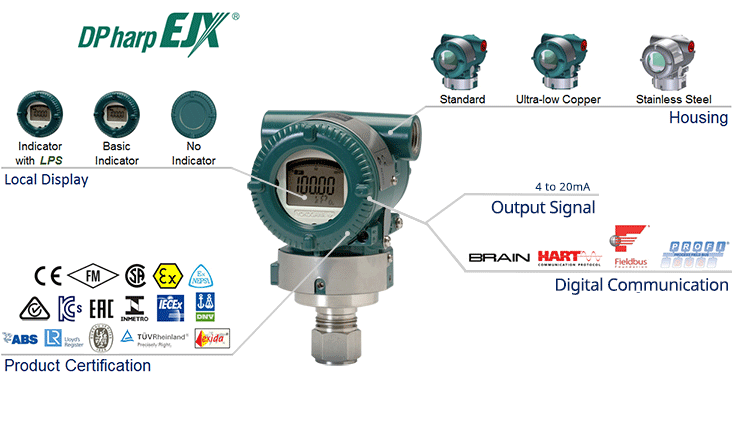

The EJX530A is an In-Line Gauge Pressure Transmitter in the series.
EJX530A standard features include:
- ± 0.04% Accuracy
- ± 0.1% per 15 years Stability
- 90 ms Response Time
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
EJX530A Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
| Measurement Types | |
|---|---|
| Reference Accuracy | |
| Stability | |
| Response Time | |
| Rangeability | |
| Burst Pressure (Absolute) | |
| Specification Conformance | |
| Primary Variable | Absolute Pressure |
| Primary Variable | ±0.04% of Span |
| Primary Variable | ±0.1% of URL per 15 years |
| Primary Variable | 90ms |
| Primary Variable | A Capsule: 25:1 B, C and D capsules: 100:1 |
| A, B, or C Capsule | 4,350 psi (30 MPa) |
| D Capsule | 19,100 psi (132 MPa) |
| EJX-A Series | ±3σ |
