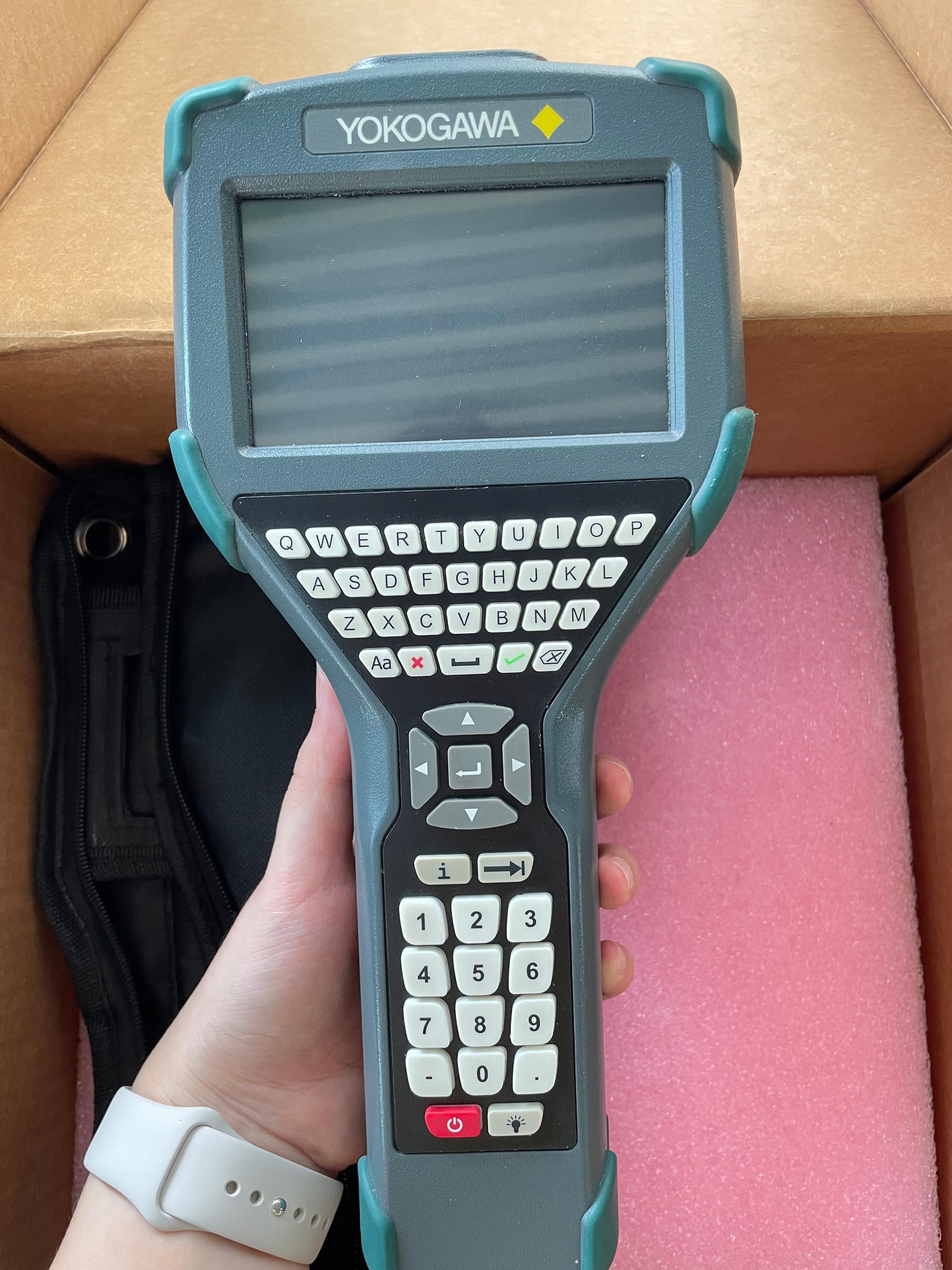

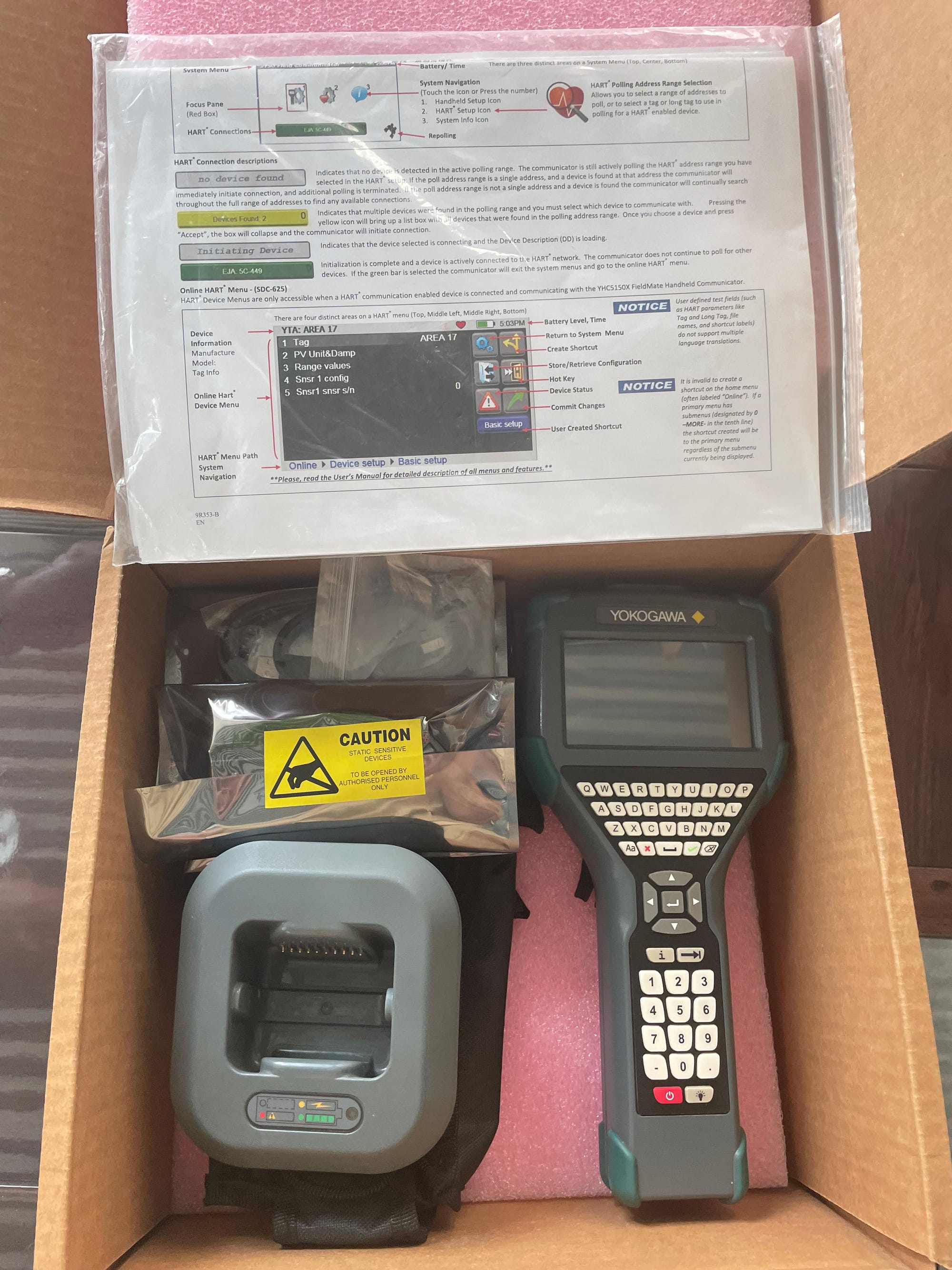

Yokogawa HART Communicator YHC5150X
Yokogawa Yhc5150X-01 Portable Fieldmate Handheld Hart Communicator
Features
• Reads manufacturers' DDs in their native format without the need for translations
• HART®-compliant modem communicates with any registered or unregistered HART® Device, including HART® 6 and 7
• Features an ergonomic, handheld design
• Enhanced 4.3" diagonal anti-glare touchscreen with colour graphic display (no stylus required)
• Full QWERTY keyboard for commissioning new transmitters
• On Demand Help Menus and teachable device-specific short cuts
• More than twice the battery capacity of any handheld communicator
• Manage device information
• Integrated multi-language support
• Similar to the Emerson 475 Field Communicator and Meriam MFC5150 HART® Communicator.
Benefits
Improved Operational Efficiency: The YHC5150X allows operators to quickly access and adjust process parameters, reducing the time required for manual operation and troubleshooting, thereby improving the overall operational efficiency of the system.
Enhanced System Reliability: By enabling real - time monitoring and fault diagnosis, it helps to detect and address potential problems promptly, preventing system failures and reducing downtime, thus enhancing the reliability and stability of the industrial process.
Cost - Effective: Its multi - protocol support and compatibility with various field devices reduce the need for additional communication equipment and integration costs. Moreover, its long - service life and low maintenance requirements contribute to overall cost savings.
Applications:
Process Industry: Widely used in the petrochemical, chemical, pharmaceutical, and food processing industries, etc. It is used to monitor and control process variables such as temperature, pressure, flow, and level, ensuring the stable operation of production processes.
Power Generation Industry: Applied in power plants to monitor and adjust the operating parameters of turbines, generators, and boilers, helping to improve the efficiency and reliability of power generation.
Water and Wastewater Treatment: Used in water treatment plants and wastewater treatment facilities to monitor and control the treatment process, ensuring the quality of water supply and the proper treatment of wastewater.
Processor | 1 GHz microprocessor |
Memory | Internal flash: 512 MB RAM: 256 MB System card: Up to 64 GB secure digital card (4 GB installed) |
Display | 4.3 - inch diagonal anti - glare enhanced touch - screen ¼ VGA (480×272 pixels) color transflective display |
Keypad | 52 keys including QWERTY keys, 12 alphanumeric keys, tab key, backlight key, power key, and 4 cursor - control (arrow) keys; Membrane design with tactile feedback |
Weight | Approx. 2.1 lbs (0.91 kg) with battery |
Size | 303×142×48 mm (11.9×5.6×1.9 inches) |
Power Supply | Rechargeable lithium - ion power module Battery operating time: 10 hours - continuous use; 20 hours - typical use; 100 hours - standby / hibernate Battery charger: Input voltage 100 - 240 VAC, 50 - 60 Hz, with Asian, US, European, and UK adapters |
Connection | HART: Two 4 - mm banana plugs (one common to HART) USB: Supporting up to 115 kbps |
Environmental Conditions | Usage: +14°F (-10°C) to +122°F (+50°C), 0% to 95% RH (non - condensing) Charge: +50°F (+10°C) to +104°F (+40°C) Storage: With batteries - 4°F (-20°C) to +131°F (+55°C); without batteries - 4°F (-20°C) to +150°F (+60°C) Enclosure rating: IP51 Shock: Tested to survive a 1 - meter drop onto concrete |
Certification | Class I, Division 1: Groups A, B, C, D; T4 (Culus) II 1G Ex ia IIC T4 Ga (ATEX) Ex ia IIC T4 Ga (IECEx) |
