Yokogawa YTA610 Temperature Transmitter
Product Description

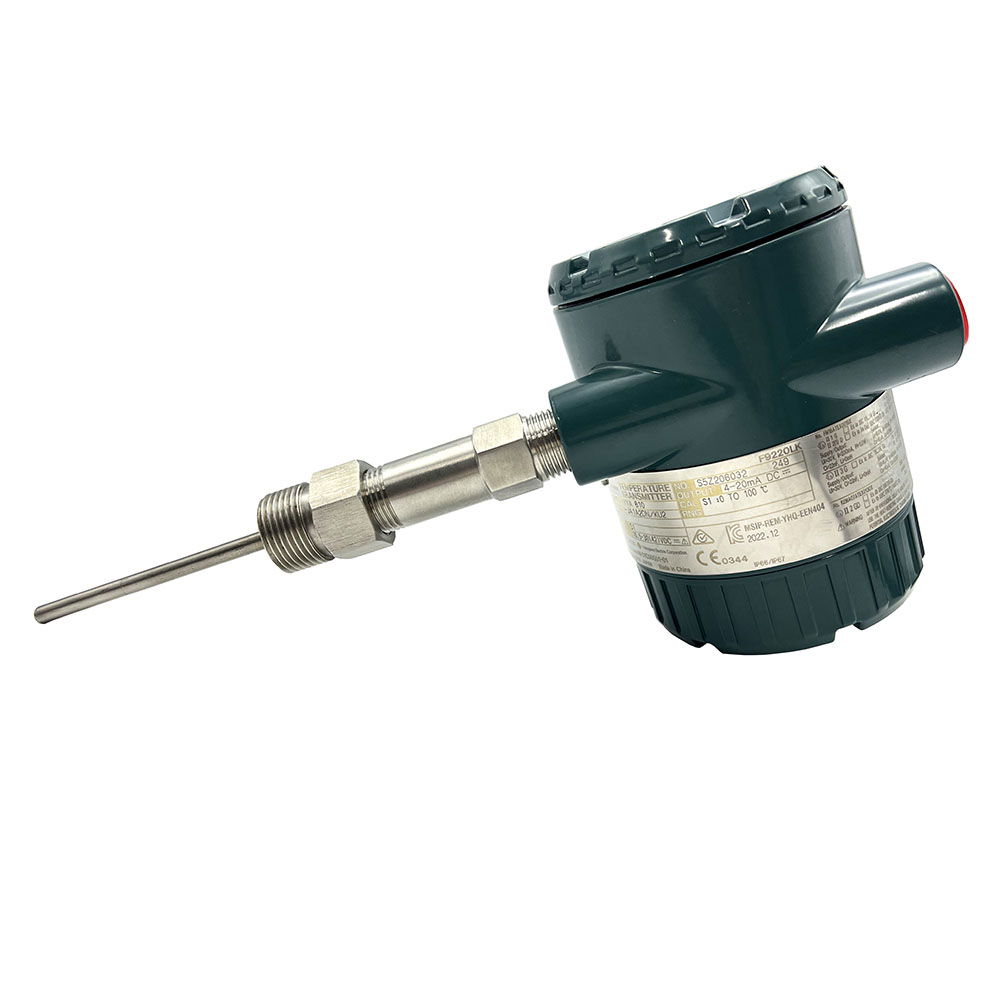

Yokogawa YTA610 Temperature Transmitter
The YTA610 provides high accuracy, stability, and reliability. The housing structure adopts reliable dual-compartment structure. The sensor input can be choice of single or dual inputs. This input can accept the RTD, thermocouple, ohm, or DC millivolt. It converts the sensor input to a 4 to 20 mA DC analog signal or Fieldbus digital signal. HART 7 Protocol or FOUNDATION™ Fieldbus ITK 6 version are available. The dual input can accept two sensors calculation of the differential or average value and the sensor backup function. Sensor backup functions for automatically switches-over from the primary to the backup upon sensor failure.
By adoption of local parameter switch on the Indicator, it becomes easy to do the on-site setting work.
By adoption of local parameter switch on the Indicator, it becomes easy to do the on-site setting work.
FEATURES
High reliability
Dual-compartment housing realizes high resistance capability to harsh environments.
Variety of sensor inputs
The type of sensor input is user-selectable from thermocouples (T/C), RTDs, ohms, or DC millivolts.
Digital communication
HART protocol revision is 7 and FOUNDATION Fieldbus.
The instrument confi guration can be changed by the user with using the Fieldmate or Handheld terminal.
Local Parameter Setting
Parameter confi guration by the push button offers easy and quick setup for parameters.
Self-diagnostics function
Continuous self-diagnostics capability ensures longterm performance and lower cost of ownership.
Dual universal inputs
Dual input can accept two thermocouple, RTD, ohm or DC millivolt inputs. Diff erential or average temperature measurement is selectable. The sensor backup function for automatically switches-over from the primary to the backup upon sensor failure.
Dual-compartment housing realizes high resistance capability to harsh environments.
Variety of sensor inputs
The type of sensor input is user-selectable from thermocouples (T/C), RTDs, ohms, or DC millivolts.
Digital communication
HART protocol revision is 7 and FOUNDATION Fieldbus.
The instrument confi guration can be changed by the user with using the Fieldmate or Handheld terminal.
Local Parameter Setting
Parameter confi guration by the push button offers easy and quick setup for parameters.
Self-diagnostics function
Continuous self-diagnostics capability ensures longterm performance and lower cost of ownership.
Dual universal inputs
Dual input can accept two thermocouple, RTD, ohm or DC millivolt inputs. Diff erential or average temperature measurement is selectable. The sensor backup function for automatically switches-over from the primary to the backup upon sensor failure.
Benefits and Applications
Benefits
• High reliability
• Variety of sensor inputs
• Digital communication
• Local parameter setting
• Self-diagnostics function
• Dual universal in puts
• Variety of sensor inputs
• Digital communication
• Local parameter setting
• Self-diagnostics function
• Dual universal in puts
Applications
• Industrial Automation Control
• Environmental Monitoring
• Medical Equipment
• Cold - Chain Logistics
Specification
Item | valve |
Type | Temperature transmitter |
Input Signals | - Input number: Single and dual - input - Input type: Thermocouples, 2 -, 3 -, and 4 - wire RTDs, Ohms and DC millivolts - Input signal source resistance (for T/C, mV): 1 kΩ or lower - Input lead - wire resistance (for RTD, ohm): 10 Ω per wire or lower |
Output Signals | - Two - wire 4 - 20 mA DC type, output range: 3.68 to 20.8 mA DC, HART protocol is superimposed on the 4 - 20 mA signal - Fieldbus type: Based on FOUNDATION Fieldbus communication protocol |
Communication Protocols | HART 7, FOUNDATION Fieldbus |
Accuracy | - HART communication type: A/D accuracy / span + D/A accuracy - Fieldbus communication type: A/D accuracy - Cold junction compensation accuracy: ±0.5 °C (±0.9 °F) for T/C only |
Ambient Temperature Effect | See the relevant table in the specification document |
Stability | - At 23 ± 2 °C, RTD: ±0.1% of reading or ±0.1 °C per 2 years, whichever is greater; T/C: ±0.1% of reading or ±0.1 °C per year, whichever is greater - 5 - year stability at 23 ± 2 °C, RTD: ±0.25% of reading or ±0.25 °C, whichever is greater; T/C: ±0.5% of reading or ±0.5 °C, whichever is greater |
Vibration Effect | Tested to IEC 60770 - 1, 10 to 60 Hz: 0.21 mm peak displacement; 60 to 2000 Hz: 3 g, with no effect on performance |
Power Supply Effect (HART type) | ±0.005% of calibrated span per volt |
Safety Requirements | - Standards: EN 61010 - 1, C22.2 No. 61010 - 1; EN 61010 - 2 - 030, C22.2 No. 61010 - 2 - 030 - Installation category: I (anticipated transient over - voltage 330 V) - Pollution degree: 2 - Measurement category: O (other) (measurement input voltage: 150 mVdc max) - EU RoHS directive applicable standard: EN 50581 |
Normal Operating Conditions | - Ambient temperature limits: –40 to 85 °C (–40 to 185 °F); –30 to 80 °C (–22 to 176 °F) (with indicator model) - Ambient humidity limits: 0 to 100% RH at 40 °C (104 °F) |
Features | - Dual - compartment field - mount housing - Local parameter setting (LPS) function (model with indicator) - Self - diagnostics function - Sensor matching (optional) - Custom thermocouple user table |
Certifications | Exida IEC 61508 certification, and has acquired various international certifications including FM, CSA, ATEX, IECEx, INMETRO, KOSHA, EAC, and NEPSI |
